Overview
Place of Origin:
Hunan, China
Brand Name:
Huabond
Model Number:
HTB-AH818
Size:
Customer's Requirements
Usage:
Indoor
Function:
Anti-Static, Antibacterial, Fireproof, Mould-Proof
Surface Treatment:
Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated
Product name:
aluminium honeycomb sheets with favorable price
Bending Strength:
17.9Mpa
Compression Strength:
1.33Mpa
Tensile shear strength:
0.6Mpa
Aluminum Alloy Grade:
A3003, A5052
Film for option:
117℃ /180℃
Thickness deviation:
+-0.5mm
Color:
Customer's Requirements
Packaging & Delivery
Packaging Details
Export plywood cases
Port
Guangzhou, China
Lead time :
Quantity(Square Meters) | 1 - 10000 | >10000 |
Est. Time(days) | 15 | To be negotiated |
Product Description

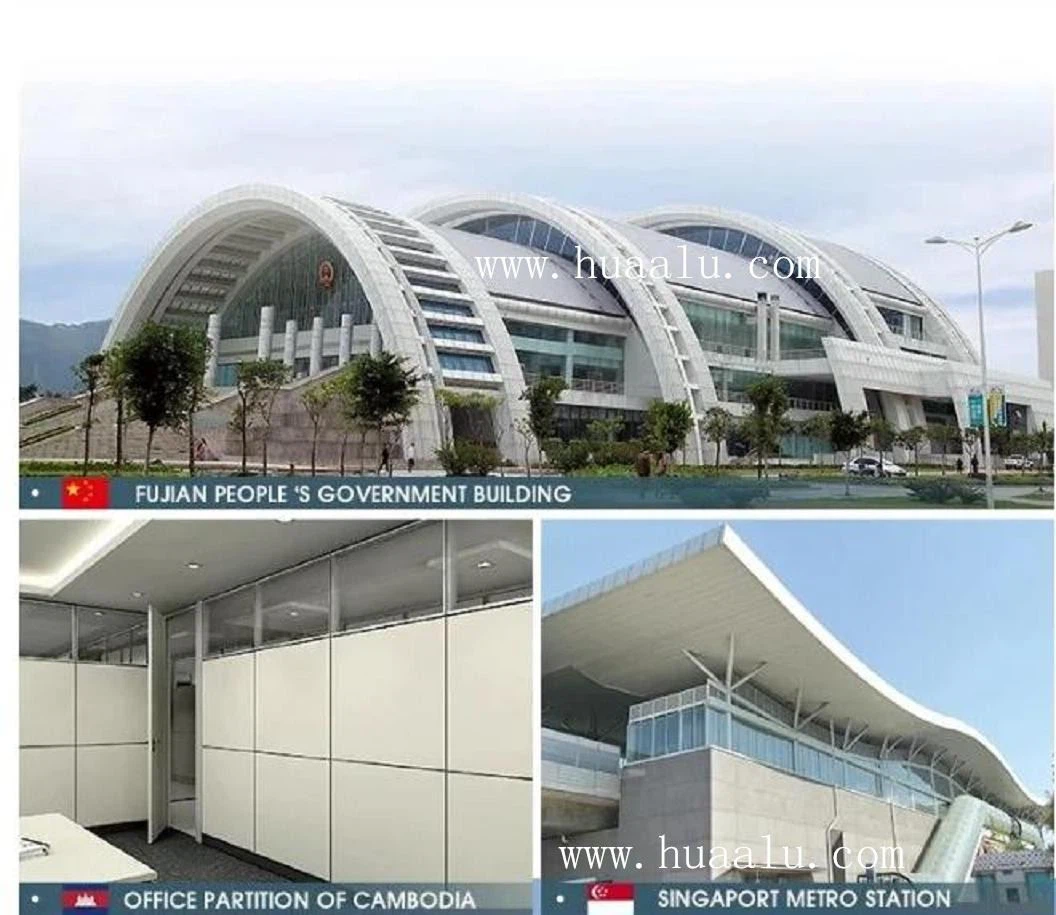

Aluminum honeycomb panels are sandwich-structured composites with honeycomb cores. They are manufactured by using a variety of different materials, depending on the intended application and required characteristics, from paper or thermoplastics, used for low strength and stiffness for low load applications, to high strength and stiffness for high performance applications, from aluminum or fiber reinforced plastics. The strength of laminated or sandwich panels depends on the size of the panel, facing material used and the number or density of the honeycomb cells within it. Aluminum honeycomb panels are widely used in automotive and furniture to construction and logistics.
PRODUCT NAME | aluminum honeycomb panel |
SKIN MATERIALS | aluminum, fiberglass, zinc, carbon fiber, galvanized sheet, HPL, stainless steel, HPL |
STNADARD THICKNESS | 6mm,10mm,15mm,20mm,25mm |
THICKNESS | 2 -500mm |
STANDARD SIZE | 1250x2500mm, 1500x5800mm |
MAX SIZES | 1600x12000mm, 2500x6000mm |
FINISH | mill finish, RAL colors, wood/stone pattern, anodized, brush, mirror |
STANDARD | CN, BS, ASTM |
Stone pattern honeycomb panel
Stone aluminum honeycomb panels widely used in interior applications such as office partition, toilet cubicle, wardrobe, furniture top and so on.

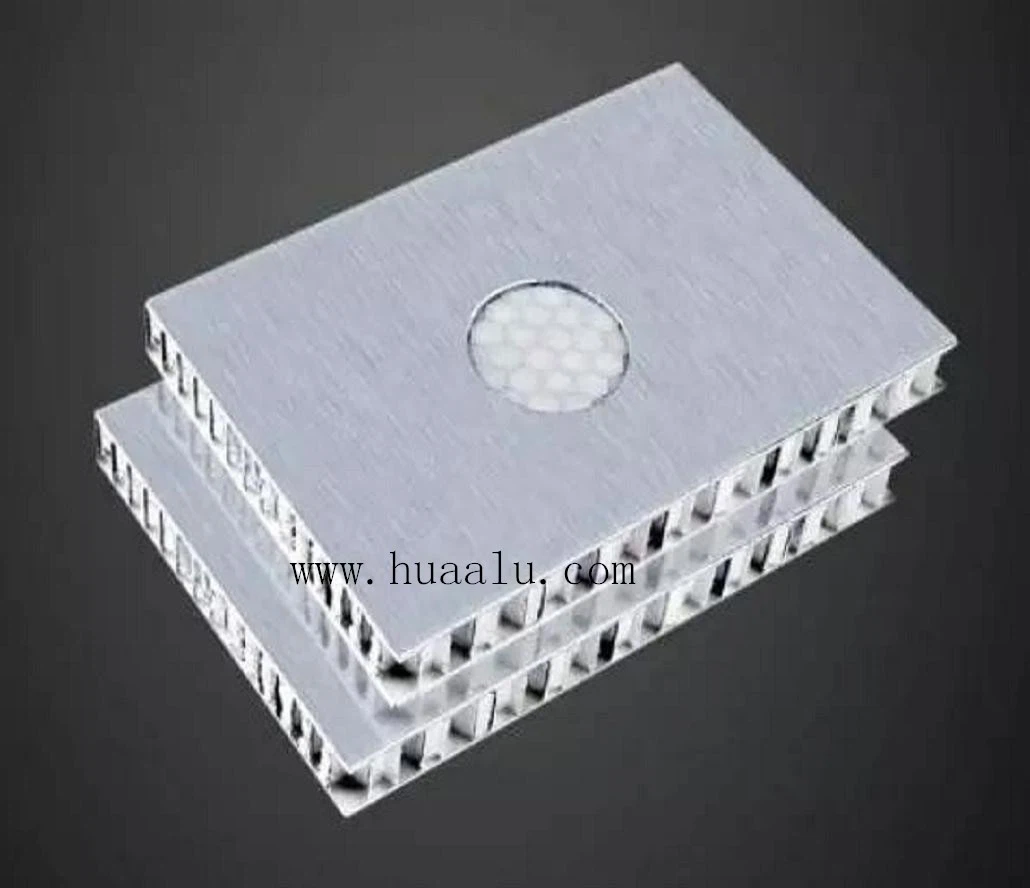

Aluminium honeycomb cladding panel
· Specification:
· Face:1.0mm aluminum sheet
· Core: Aluminum honeycomb(1/4'' cell size) Back:0.7-1.0mm aluminum sheet Standard Thickness:6mm,10mm,15mm,20mm,25mm
Fiberglass honeycomb panel
· Standard construction:
Face:0.5-1mm fiberglass impregnated with epoxy resin
Core: Aluminum honeycomb(1/4'',3/8''.1/2'',3/4'' cell size, aluminum foil 0.04 to 0.08mm) Back:0.5-1mm fiberglass impregnated with epoxy resin
Wood pattern honeycomb panel
By thermal transfer printing, PVC film, PVDF/PE coating, it is able to achieve the wood/stone finish for aluminum honeycomb panels that give same looks as real wood and natural stone. Wood grain aluminum honeycomb panels widely used in interior applications such as office partition, toilet cubicle, wardrobe, furniture top and so on.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment. Sight LC acceptable.
