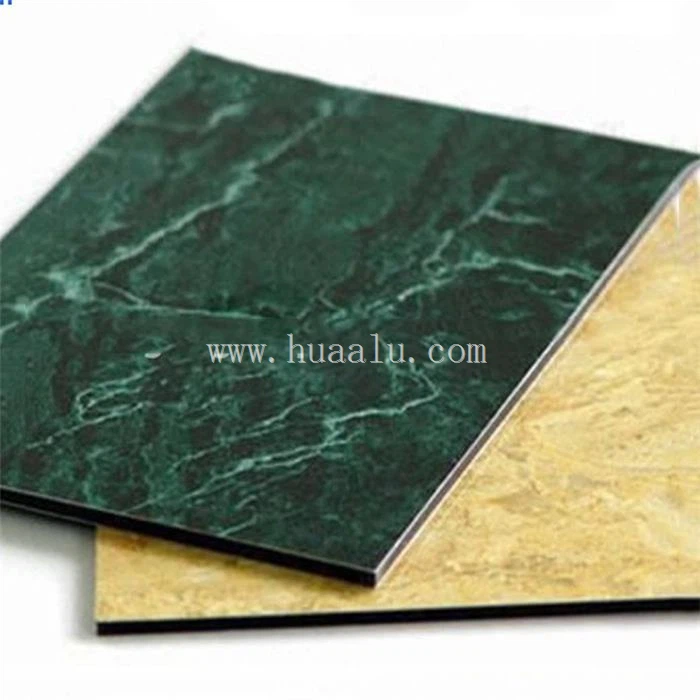

Marble ACP Panel/Marble Pattern Aluminum Composite Panel

Size: 1220 x 2440 mm, Customized Size

Place of Origin: Hunan, China

Brand Name: HUABOND

Model Number: HTB-M226

Usage: Indoor, Outdoor

Function: Anti-Static, Antibacterial, Fireproof, Mould proof

Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated, Other

Material: Aluminum

Surface treatment: Powder Coating

Color: Required

Certificate: ISO9001

Application: Outdoor Sun Shades

Quantity(Square Meters)

1 - 500

501 - 1000

>1000

Est. Time(days)

15

10

To be negotiated

STANDARD SIZE

1220 X 2440MM (4X8 FEET)

OPTION THICKNESS

2MM TO 16MM

OPTION WIDTH

LESS THAN 2000MM

OPTION LENDTH

UPON REQUIREMENT

ALU THICKNESS

0.05MM TO 0.5MM

COLOR

UPON REQUIREMENT

COATING

PE/PVDF/NANO

FUNCTION

SELF-CLEAN/FIREPROOF/ANTI-STATIC/ANTI-BACTERIA

CERTIFICATION

SGS/ISO 9001:2015

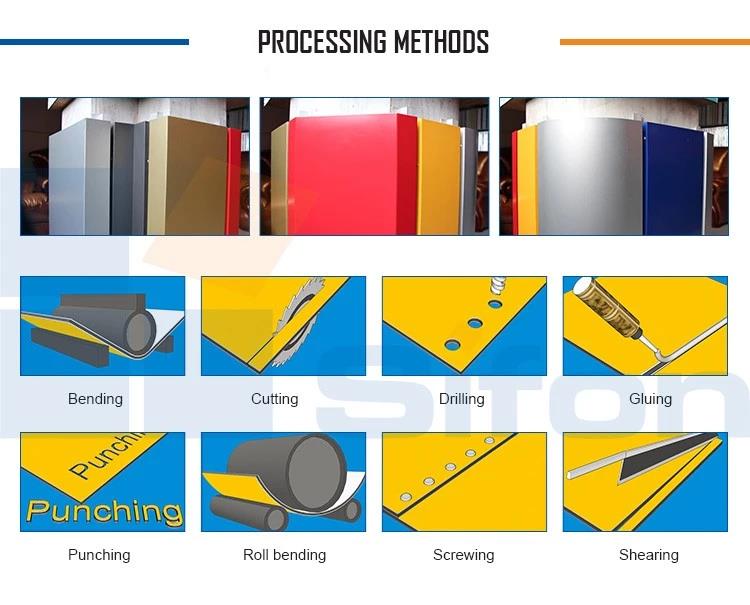

PROCESSING TECHNIQUE

DRILLING/SAWING/NAILING/SCREWING/STICKING/PRITING

SAMPLE

FREE SAMPLES ARE AVAILABLE

Standard size

1220*2440mm

Aluminium sheet thickness

0.15mm,0.21mm,0.30mm,0.40mm,0.50mm

Panel thickness

2mm.3mm,4mm.5mm,6mm

Width

1220mm,1250mm,1500mm,

Length

upon customers request,recommmend 2440mm,3050mm,4050mm

Brand Name

HUABOND Popular Exterior Marble Pattern Wall Aluminum Plastic Composite Panel

Panel size

1) Standard size: 1220mmx2440mmx3mm/4mm
Non-standard size: 1250x3200mm, 1550x5800mm
2) Accepted thickness:2-4mm(standard) 5mm 6mm(new and special)
3) Accepted width: 1000mm, 1220mm, 1250mm, 1500mm, 1550mm, 2000mm
(non-standard width, but available),etc.
4) Accepted Length: According to buyer's requirements (Max:5800mm)
5) Skin aluminum thickness
Indoors: 0.15*0.15mm 0.18*0.18mm 0.20*0.20mm
Outdoors: 0.5*0.5mm 0.4*0.4mm 0.3*0.3mm 0.25*0.25mm 0.20*0.20mm 0.15*0.15mm

Materials

1) Front: Aluminium alloy sheet coated with PVDF or PE.
2) Core: Nontoxic low density polyethylene(LDPE)/plastic fireproof materials(B1 OR A2).
3) Back: Aluminium coated with polyester service coating or just mill finish.

Quality

1) Under common temperatures and radiation, the surface is no color different.
2) Under natural climate, film coating will be no flake, no rubbles, no vestige and no pulverization.
3) Under common environment, no flake, no rubbles.
4) Products with PVDF coating guarantee 15~20 years.
5) According to international test standard, all the tested items are satisfied with high-class.

Characteristics

1) Light weight, the intensity is high, easy to maintain, cut bend, arch and install.
The panel average weight is 3.5 - 5.5 kg/sqm.

2) Extremely good for the weathering resistance, acidity, alkaline resistance, thermal insulation, acoustic insulation and damping.

3) The surface is smooth and flat and easy to maintain, just use neutral cleaner and water can totally renew the panel.

4) The aluminum surface is tough, the core PE panel is flexible, therefore the panel.

5) High impact resistance.

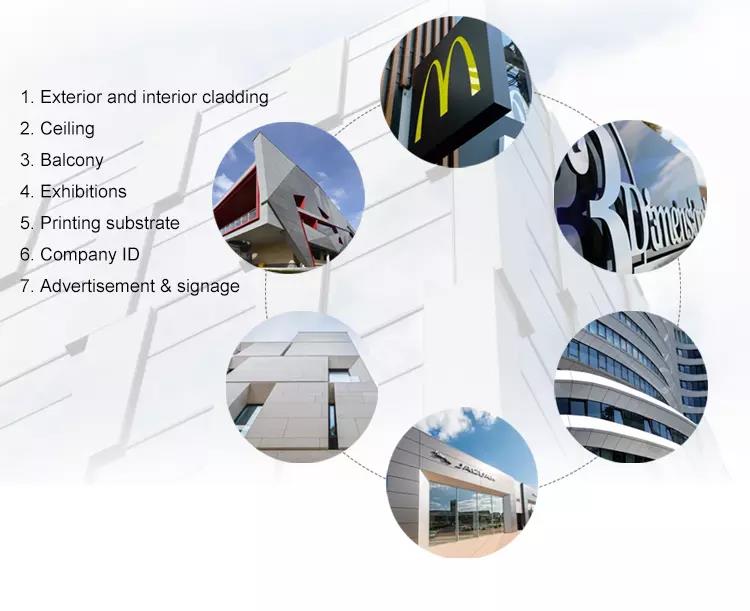

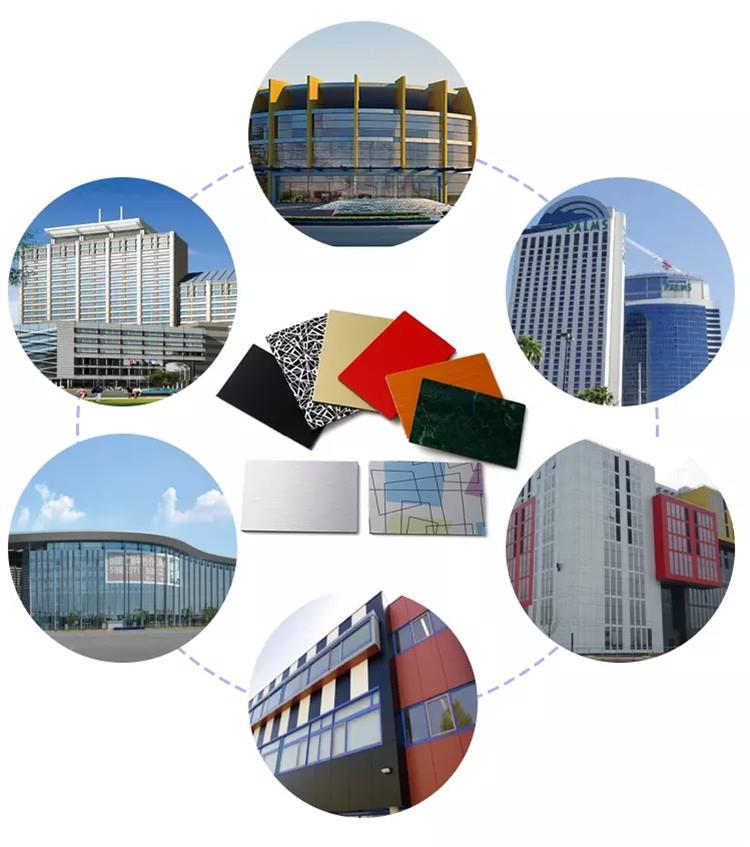

Application

1) Constructional exterior curtain walls;
2) Decorative renovation for storey-added old buildings;
3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
4) Advertisement board, display platforms and signboards;
5) Wallboard and ceilings for tunnels;
6) Raw materials in industrial purpose;
7) Materials used for vehicle and boat.

Certification

According to GB/17448-1999 standard and have passed ISO9001, ISO14001, SGS, CE, BV etc.

Regular solid plain color

Bright silver, pure white, ivory white, silver grey, black, Chinese Red, Reddish red...

Glossy

Glossy white, glossy red, glossy black, glossy blue...

Pearl

Glossy pearl white, glossy pearl red, glossy pearl blue, glossy pearl black...

Wood

Teak, walnut, maple, pine, China fir, wild cherry...

Marble

Indian red, Rosso lepanto, imperial red...

Brushed

Silver brushed, golden brushed, black brushed, brass brushed...

Mirror

Golden mirror, silver mirror, blue mirror...

PET film

Laser, anodized, flower and grass, wooden, marble, abstract...

Embossed

New available

Colorful paint

Six design
