Overview
Quick Details
Place of Origin: Changsha, China
Brand Name: HUABOND®
Model Number: H-A113
Usage: Outdoor
Function: Anti-Static, Fireproof
Surface Treatment: PE，FEVE & PVDF
Size: 1220*2440 (4*8feet)
Panel thickness: 2/3/4/5/6-16mm
Aluminum Thickness: 0.03-0.5mm
Width: 1220mm/1250mm/1500mm/1570mm/1800mm/2000mm
Length: Customized Length
Core: LDPE / Fireproof / A2 Non-combustible
Aluminum Alloy Grade: 1100 3003 5005
Protective film: OEM Accepted
Application: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Supply Workshop, Park, Farmhouse, Courtyard
Color: Light Green, Blue, Light Yellow, Army Green, Light Grey, Clear, Sky Blue, Green, Dark Grey, Black, Pink, White, Red, Yellow, Brown, Navy Blue, Orange, Chocolate
Ability: 20000 Square Meter/ Per Day
Port: Shanghai Port
Specification
Specification of PE Finish Aluminum Composite Panel | |
Panel Thickness | 3mm, 4mm, 5mm, 6mm...... |
Aluminum Foil Thickness | 0.18mm, 0.2mm, 0.3mm, 0.4mm and 0.5mm |
Aluminum Alloy | AA1100, AA3003, AA5005... |
Width | 1220mm, specially 1500mm |
Length | Can be customized, normally within 5800mm (20ft container's inner length) |
Coating | PE / PVDF Brushed Finish |
Middle Plastic Core | Unbreakable LDPE, Fire proof LDPE, Breakable LDPE |
Color | Silver Brushed, Golden Brushed, Brown Brushed etc.... |
Warranty | PE: 10 years; PVDF: 20 years |
Delivery Time | 18-22 days after receiving deposit payment |
Payment Term | T/T, L/C at sight. |
Supply Ability:
350000 Square Meter / Per Month
Packaging Details
Packed in bulks or wooden box, suitable for shipping container
Port: Shanghai
Lead time: Within 18-22 days after receiving payment
Product Description:

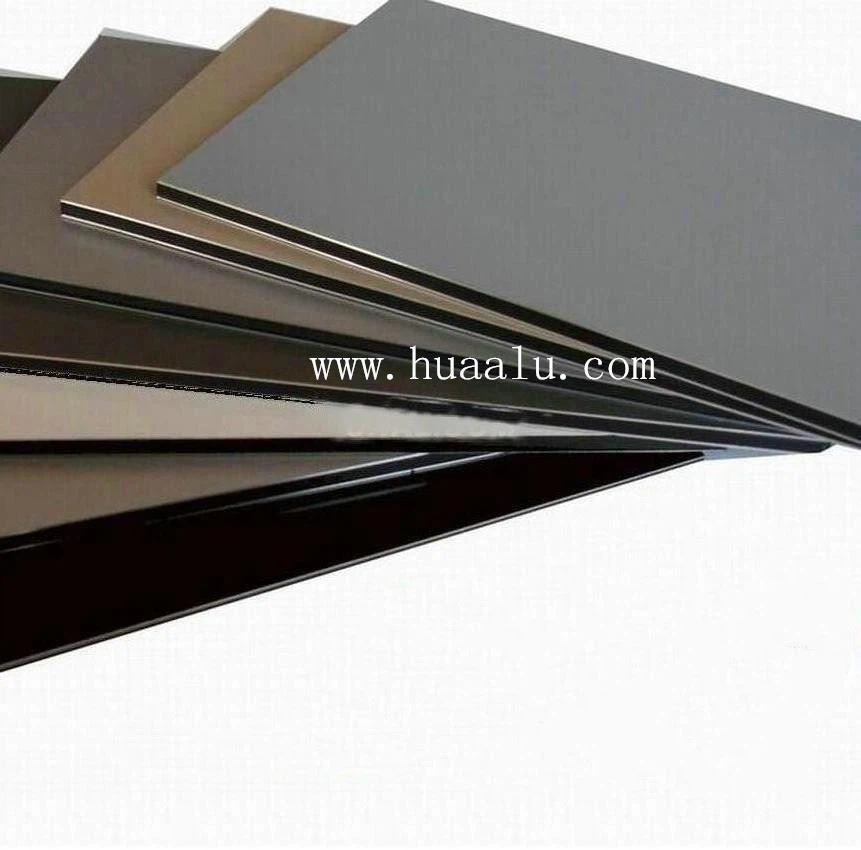

PVDF Aluminum composite panel consists of two layers of aluminum skin sandwiching a PE core in a continuous extrusion process. The outer surface of panel is coated with PVDF Kynar500 fluorocarbon coating to provide a long lasting, durable finish for wall cladding applications
Name | ACP sheet |
Thickness | 2mm-16mm |
Length | Max 11000mm |
Width | 1220mm(maximum 1570mm) |
Standard Size | 1220mm*2440mm*3mm/4mm/5mm |
Color | As per customer's requirement |
Surface Treatment | Anodized, Brushed, Mirror, PE Coated, Shinning Silver, PVDF coated, Printing |
Function | Anti-Static, Antibacterial, Fireproof, Mould-Proof |
Application | Decorative Material |
Quality Guarantee | 20 years |
Place of Origin | Hunan, China |
Characteristics: | |
1 | High resistance to peeling |
2 | Superior weather resistance |
3 | Light weight and easy to process |
4 | Excellent fire resistance properties |
5 | Coating evenness |

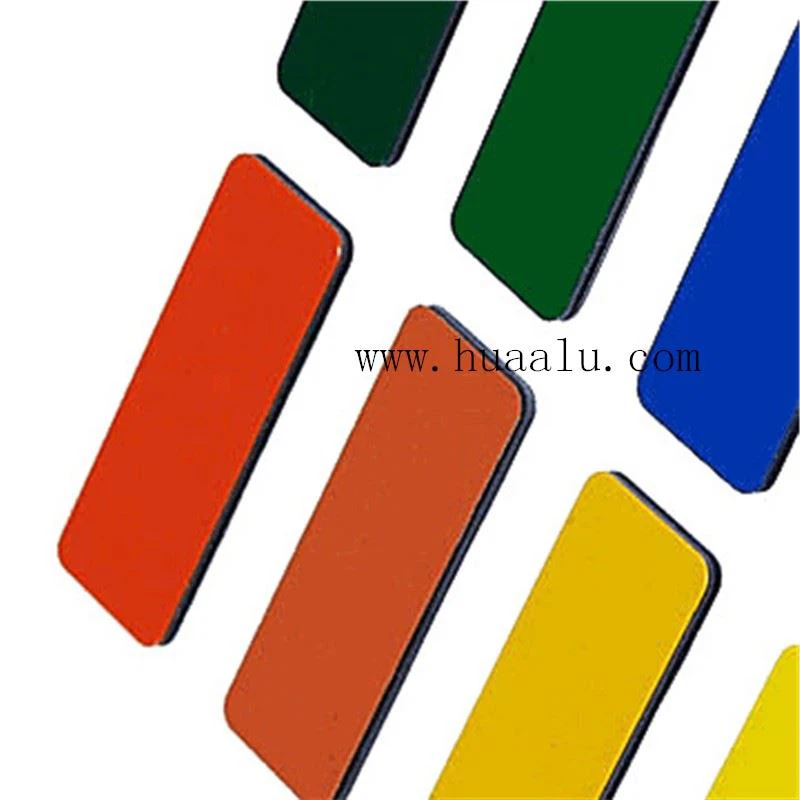

6 | Diversified colors |
7 | Easy for maintenance |
8 | Impact resistance |
Quality: |
Light weight, high strength, extreme rigidity, superior impact resistance, |
Excellent surface flatness and smoothness, |
Heat insulation, sound insulation, fire-resistance, |
Acid-resistance, alkali-resistance, good weatherproofing and non-resonance, |
Various uniform colors ,can be easily processed and fabricated, quickly installed, |
Elegant and magnificent, good flexibility fits various designs, |
Easily maintenance, simply cleaning. |
Application scope of aluminum composite panels：
Curtain wall boards for outside walls of normal buildings
Renovations of old buildings and movable houses, exterior architecture cladding
Billboards, exhibition desks and notice boards, advertising signage
Materials for industrial application, car and ship bodies, interior designs
Refresh and decoration for indoor walls, ceilings, bathrooms, kitchens and balconies
