Aluminum plastic sandwich composite panel / Exterior wall ACM metal composite aluminum sandwich panel
Overview
Quick Details
| Size: 1200*2440mm, customized Place of Origin: Hunan, China Brand Name: Huabond Model Number: HTB-A522 Usage: Outdoor, Outdoor,Indoor, Advertising Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof, Anti-Static, Antibacterial, Fireproof,Mould-proof | Surface Treatment: Anodized, Brushed, Mirror, PE Coated, Printing, PVDF Coated, PE Coated, PVDF Coated,Anodized, Brushed, Mirror, Panel thickness: 2/3/4/5/6mm Color: Customer's Requirements Certificate: SGS |
Supply Ability
Supply Ability:
20000 Square Meters per day
Packaging & Delivery
Packaging Details
WOODEN PALLET, IN BULK
Port
SHANGHAI/ SHENZHEN
Lead Time:
Quantity(Square Meters) | 1 - 500 | 501 - 5000 | >5000 |
Est. Time(days) | 15 | 18 | To be negotiated |
Commodity | Aluminium composite panel |
Brand Name | HUABOND |
Panel thickness | 2mm~16mm |
Aluminium thickness | 0.03~0.50mm |
Panel width | 1000mm 1220mm 1250mm 1500mm 1570mm 2000mm |
Panel length | 1000mm~5800mm |
Color | White, Sparkling silver, Silver grey, Yellow, Black, Red (the color can be customized) |
Surface finish | PE, PVDF, brushed, mirrored and textured finishes, Fireproof, etc. |
Aluminium sandwich plastic composite panel manufacturers
Product Description
1. Standard:
According to GB/T 17748-1999 standard.
2. Material:
a) Front: Aluminum alloy sheet coated with fluoro-carbon resin (PVDF) and polyester resin (PE) roasting painting
b) Core: Nontoxic polyethylene.
c) Back: Aluminum alloy sheet coated with polyester resin painting
d) Surface finish: Treated with PVDF and PE resin rolling roasting .
coating
e) Surface coating thickness: 30um
f ) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.45mm, 0.5mm
3. Dimensions:
a) Thickness: 3mm, 4mm
b) Width: 1220mm 1500mm..
c) Length: 2440mm, 3200mm, 4000mm,5000mm (Max: 6 meter)
d) Weight: 5.5kg/sqm based on 4mm thickness.
e) Standard size: 1220 x 2440mm
f) Nonstandard sizes are available according to requirement of customers

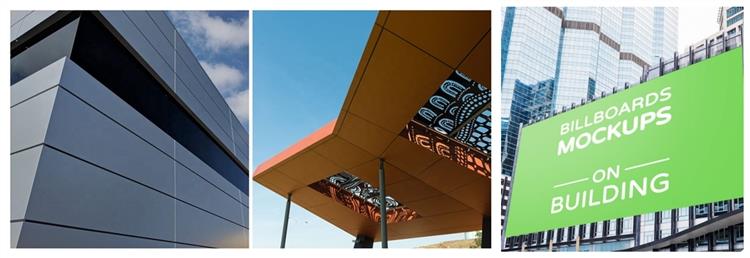

4. Application scope:
1) Building exterior curtain walls..
2) Decoration and renovation additions for old buildings
3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
4) Shop door decorations
5) Advertisement board display platforms and sign boards
6) Wallboards and ceilings for tunnels..
7) Industrial materials, materials for vehicles and boats
Product Characteristics:
1 High peeling strength
HUABOND Panel is cross linking under high temperature with high-performance and molecular binding materials, which reaches the best level for the important feature high peeling strength.
2 Superior weather resistance
By mean of KYNAR500 based PVDF coating resin, HUABOND panel possesses some superiorities in corrosion resistance, alkali resistance, chalking resistance of ultraviolet light. When exposed to the heat of tropical sunshine or the cold of frigid snowstorm, the panel never loses its colorful appearance.
3 Light Weigh and Easy to process
HUABOND Panel is easy to process for its light weight (3.5-5.6kg/m2) which can decrease the loss during an earthquake. The processing such as cutting, planning, bending or arc and several configurations in right angle can be done by some simple woodworking tools. Designers can also make the flexibility in the panel. The installation work is going to be easy and fast. For this reason, it can save the cost.
4 Excellent fireproof property
Its core layer is manufactured with Anti-toxic polyethylene core materials, having the combustion resistance property. Two surface layers are made of aluminum, which is difficult to be burnt. Therefore, this is a kind of safe fireproofing materials, complying with the fireproof demand in building code.
5 Coating Evenness, Multiple Colors
Since applied the chemosynthesis treatment and Henkel technology, the adhesion between the paint and panel becomes evener, having multiple colors. There is more space for your choice to the color with individuality.
6 Easy to Maintain
The anti-contaminant property has been obviously improved for HUABOND aluminum composite panel. Due to good self-cleaning capability, neutral detergent can clean the panel easily even though the pollution is very serious.
7 Impact resistance
The impact resistance and toughness are strong. The coating layer can not be crashed when it is bent. The panel can not be damaged when in a strong windy and sandy condition.
Our Advantage
♦ Professional manufacturer:
We are professional designer and manufacture of aluminum composite panel;
♦ Customize:
We can design and produce the aluminum composite panel as your requirement;
♦ Factory price and high quality:
Quick delivery, competitive price, high quality and long term service to our customers;
We can make sample according to customer's picture and specification.
♦ Professional team:
We provide best service for guests. Our supply is sufficient to guarantee the customers demand.
Why Choose Us:
History | Professional in manufacturing, marketing and service for 20 years. |
Production lines | Produce 5,800,000 square meter per year, finish your order on time. |
Coating lines | Produce 7,500,000 square meter per year. |
Working time | Contact line is 24 hours available for your any question. |
Flexible MOQ | Any quantity is available if we have your specification in stock. |
Good Location | Our factory in Hunan, is near to Shanghai for two hour by air. |
Strict Quality Controlling | ISO9001: 2008; ISO 14001:2004 ; GB/T28001-2001; KYNAR500 ; BeckryFluor; CTC; PCT; SGS; SIRIM; PSB |
Honour | The first Manufacture of aluminum composite panel, ect |
OEM service | Accept your own design |
Translation | Offer free translation for our customers during Canton Fair time. |
FAQ
Q: What is your terms of payment?
A: T/T 30% deposit in advance; 70% see copy of B/L.
Q: How about your delivery time?
A: Generally, it will take 18 to 22days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
