Insulated aluminum wall panels / ACP aluminum composite panel 5mm construction materials exterior insulated building panels wall
Overview
Quick Details
| Size:1220*2440*5mm Place of Origin: Hunan, China Brand Name: Huabond Model Number: HTB-A008 Usage: Outdoor, Exterior Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated, Wood grain Aluminum Composite Panel Standard size: 1220*2440*5mm | Application: Decoration Product name: Outdoor facade exterior aluminium composite panel 3mm Aluminium sheet thickness: 0.15mm,0.21mm,0.30mm,0.40mm,0.50mm Panel thickness: 2mm, 3mm, 4mm, 5mm, 6mm Core:Recycle PE Core/Fireproof PE Core/Unbreakable PE Core Coating: PE/PVDF/NANO/Anti-scratch Color: Solid/Metallic/Marable/Woode/Brush/Glossy |
Packaging & Delivery
Selling Units: Multiple of
Package size per batch: 1220X2440X45 cm
Gross weight per batch: 6900.0 kg
Package Type: In wooden pallet or in bulk, 1100 sheets / 20ft
Picture Example:
Lead Time:
Quantity(Sheet) | 1 - 3000 | >3000 |
Est. Time(days) | 15 | To be negotiated |
Acp aluminum composite panel 5mm construction materials exterior insulated building panels wall
Width
1220mm 1250mm 1500mm 1550mm 2000mm
Length
Length can be any . Max not more than 5800mm
Panel Thickness
3mm 4mm 5mm 6mm
Aluminum Thickness
0.5mm

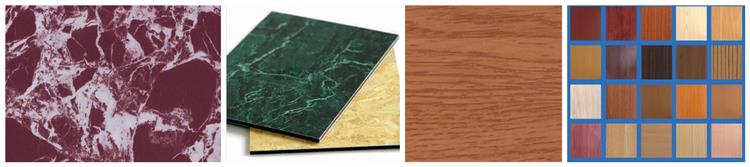

Color

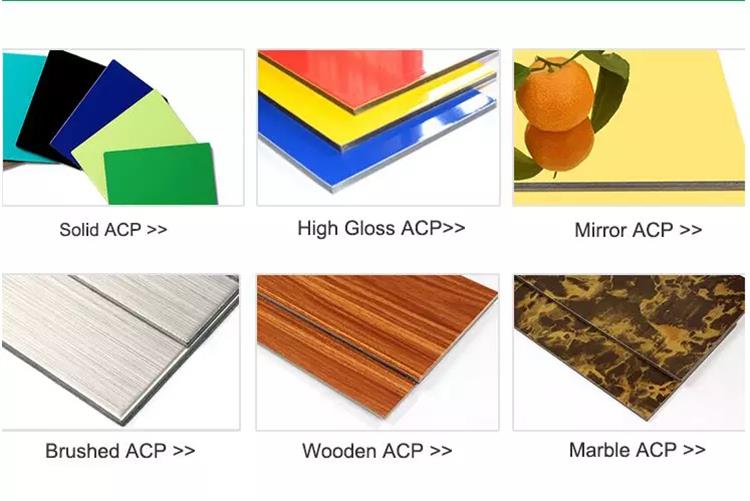

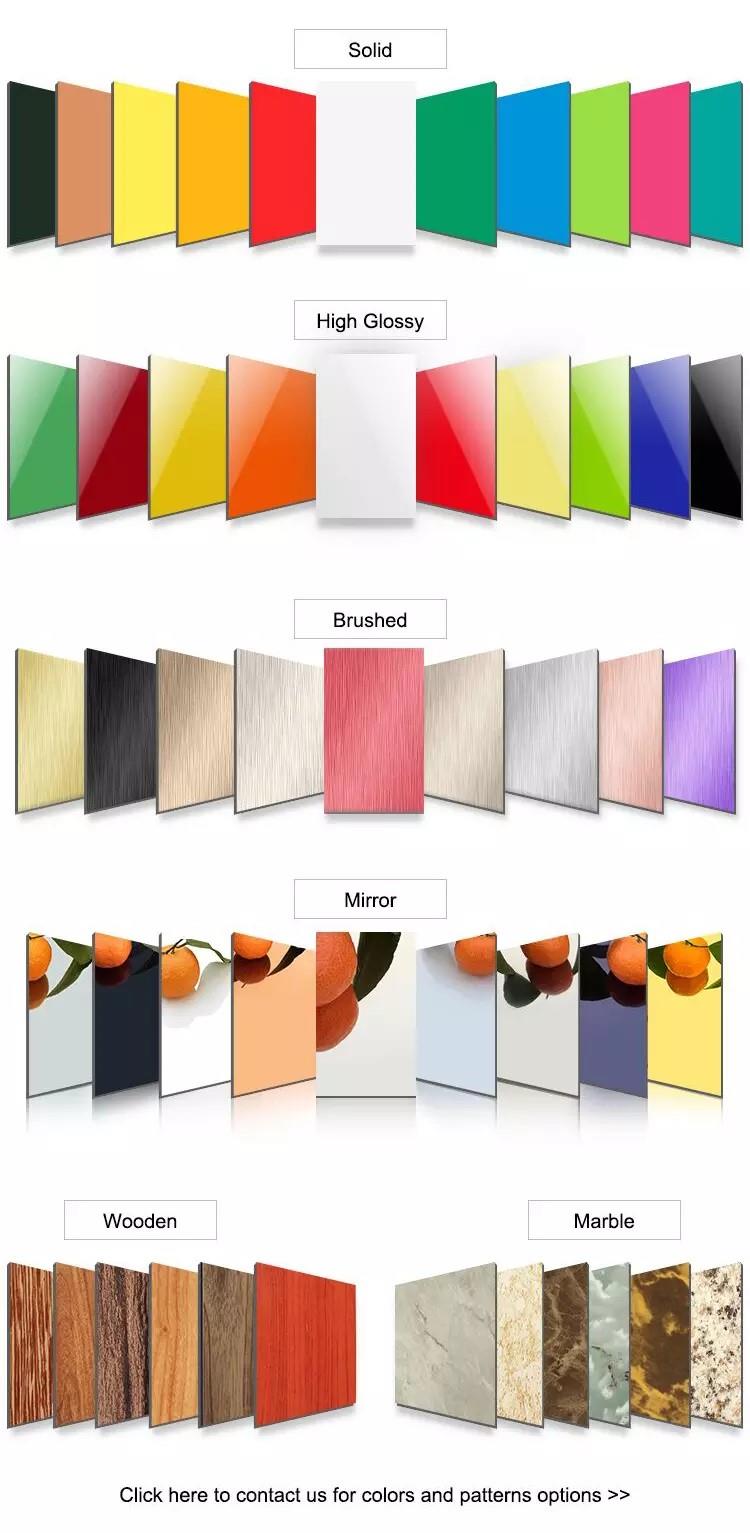

Solid / Wood / High Gloss / Mirror / Marble / Brushed / Metallic
Certification
ISO9001:2000 / ISO14001:2004 / IOHSAS18001:2007 / CE / SGS

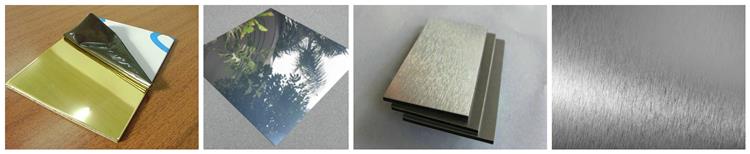

Surface Treatment
PVDF coating and PE coating.
Core
Unbroken
Features
Fireproof / Waterproof / UV Treated / nano self -clean / Anti-Scratch
SURFACE PROPERTIES
Paint Thickness(micron) | Anodize |
Pencil Hardness | 2H |
Toughness Of Coating | 2T |
Temperature Resistance | -50°C+90°C |
Impact Strength(kg/cm2) | 50 |
Boiling Water Resistance | Boiling for 2 hours,No change |
Acid Resistance | Immerse surface in 2% HC1 for 24hours,No change |
Alkali Resistance | Immerse surface in 2% NAOH for 24hours,No change |
Oil Resistance | Immerse surface in 20# engine oil for 24hours,No change |
Solvent Resistance | Cleaned 100 times with Dimethylbenzene,No change |
Cleaning Resistance | >1000 times no change |
Thermal Expansion | 2.4mm/m @100°C Temp difference |
Peel Strength | Average 131N.mm/mm |
Bending Strength | >100MPA |
Bending Elastic Modules | >2.0*104MPA |
Heat Distortion Temperature | >95°C |
Feature:
-Light weight, high strength, extreme rigidity, superior impact resistance.
-Excellent surface flatness and smoothness.
-Heat insulation, sound insulation, fire-resistance.
-Acid-resistance, alkali-resistance, good weatherproofing and non-resonance.
-Various uniform colors, can be easily processed and fabricated, quickly installed.
-Elegant and magnificent, good flexibility fits various designs.
-Easily maintenance, simply cleaning.

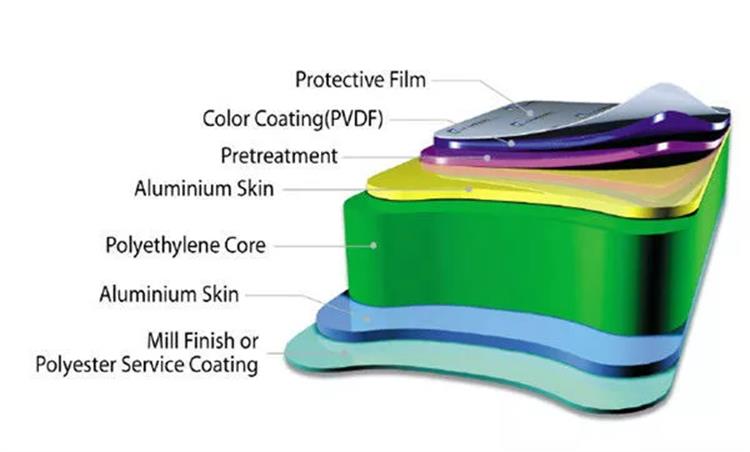

Basic Material
1) Front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE)
2) Core material: nontoxic polyethylene, PE, FR, LDPE
3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)

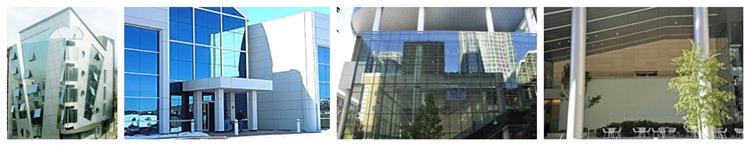

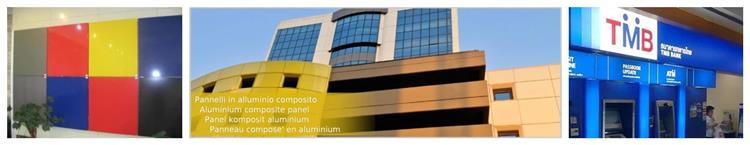

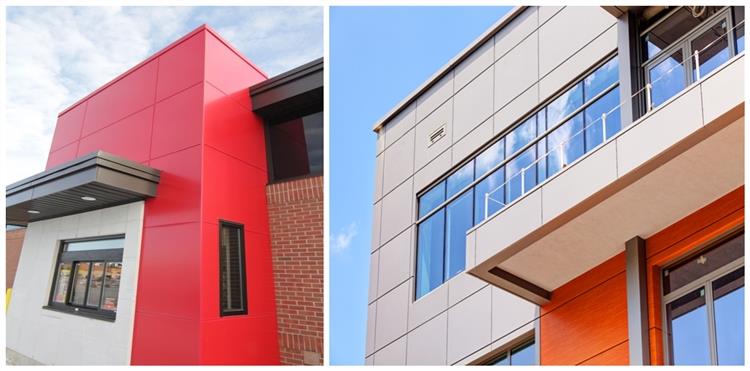

Applications:
1. Constructional exterior curtain walls;
2.Decorative renovation for storey-added old buildings;
3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
4.Advertisement board, display platforms and signboards;
5. Wallboard and ceilings for tunnels;
6. Raw materials in industrial purpose;
7. Materials used for vehicle and boat.
Properties:
Paint Thickness(micron) | ≥ 25um |
Pencil Hardness | 2H |
Toughness Of Coating | 2T |
Temperature Resistance | -500C+900C |
Impact Strength(kg/cm2) | 50 |
Boiling Water Resistance | Boiling for 2 hours,No change |
Acid Resistance | Immerse surface in 2% HC1 for 24hours,No change |
Alkali Resistance | Immerse surface in 2% NAOH for 24hours,No change |
Oil Resistance | Immerse surface in 20# engine oil for 24hours,No change |
Solvent Resistance | Cleaned 100 times with Dimethylbenzene,No change |
Cleaning Resistance | >1000 times no change |
Thermal Expansion | 2.4mm/m @1000C Temp difference |
Peel Strength | Average 131N.mm/mm |
Bending Strength | >100MPA |
Bending Elastic Modules | >2.0*104MPA |
Heat Distortion Temperature | >950C |
Characteristic:
a) Torsion Strength
High resistance to pressure and force exertion; High flexibility;No damages to paint layer when curved; Resistant to corrosion even by sand storm;
b) Easy Processing & Installation
Easy to process due to its light weight; Superior constructibility make it easy to cut, plan edge, bend and form with simple tools;
c) Thermal Resistance
Huabond ACP's have insulating properties that prevent heat to penetrate structures, which translates into energy savings;
d) Fire Resistance
PE plastic core plate is adopted as the flame retarding substance in between difficult-combustible aluminum layers; Fireproof ability is higher than B1 grade standard;
e) Weather Resistance
PVDF coating(KYNAR-500)material provides good weatherability. The surface will not be damaged under any climate; Color will last longer;
f) Even Coat &Various Colors
Huabond ACP's use advanced film technology, making the joining of paint and panel strong and uniform; Diversity of colors can satisfy your different requirements;
g) High Impact Resistance
Innovative composite production of viscoelastic core fused with durable aluminum membranes provides high impact and breakage resistance;Huabond ACP is strong and rigid;
h) Peel Strength
Advanced technology is applied in Huabond ACP's which enhances the key factor, peel strength, to an excellent condition; Planeness of panel has been largely improved;
i) Sound Resistance
The unique non-combustible polyethylene core of Huabond ACP's provides sound reducing properties better than other materials such as wood and steel;
j) Easy to Maintain
Huabond ACP's enjoy the advantage of self-cleaning; Neutral detergent and water are enough to keep it clean;
