Basic Info.:
Trademark: HUABOND®
Model NO.: H-A522
Aluminum Coil Thickness: 0.21-0.5mm
Specification: 1220*2440mm
Coating: FEVE, PE, PVDF

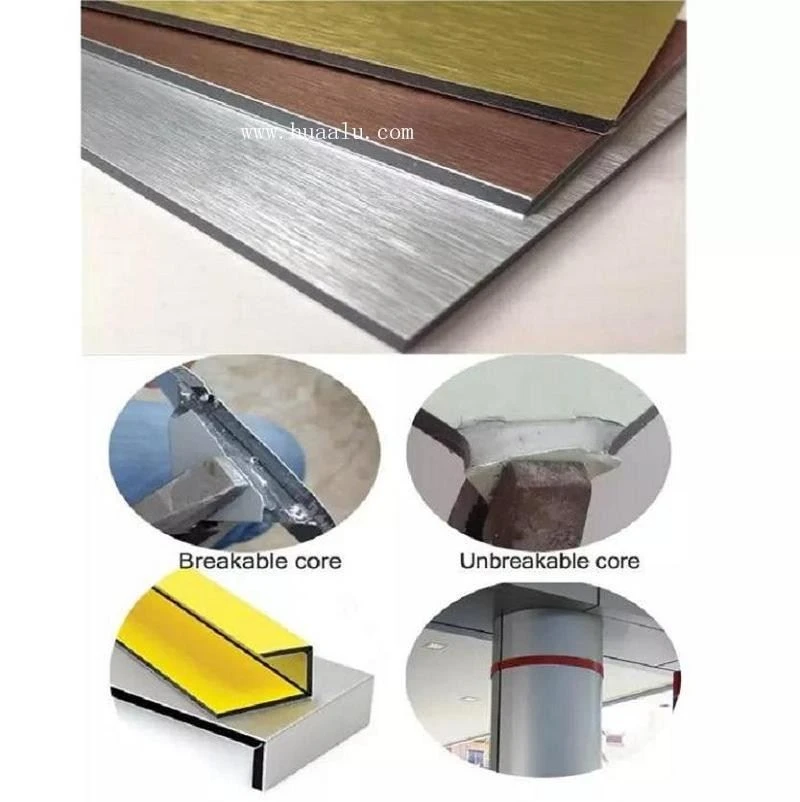

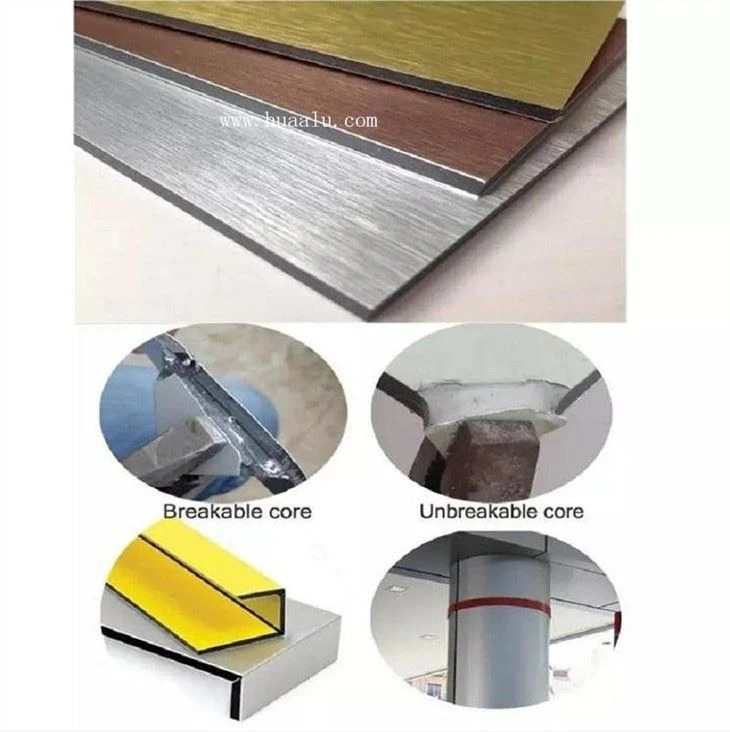

Core Material: Unbroken PE core
Front face: Aluminum roll coated with PVDF or PE
Inner face: Aluminum roll coated with PE
Thickness: 3, 4, 5, 6 mm
Width: 1,220, 1,250, 1,500, 1,570, 2,000 mm (maximum)
Length: up to 5,800 mm
Aluminum thickness: 0.12, 0.18, 0.21, 0.30, 0.40, 0.45, 0.50 mm
Standard ACP size: 1220*2440*4 mm
HS Code: 7606 1250
Origin: Changsha, China

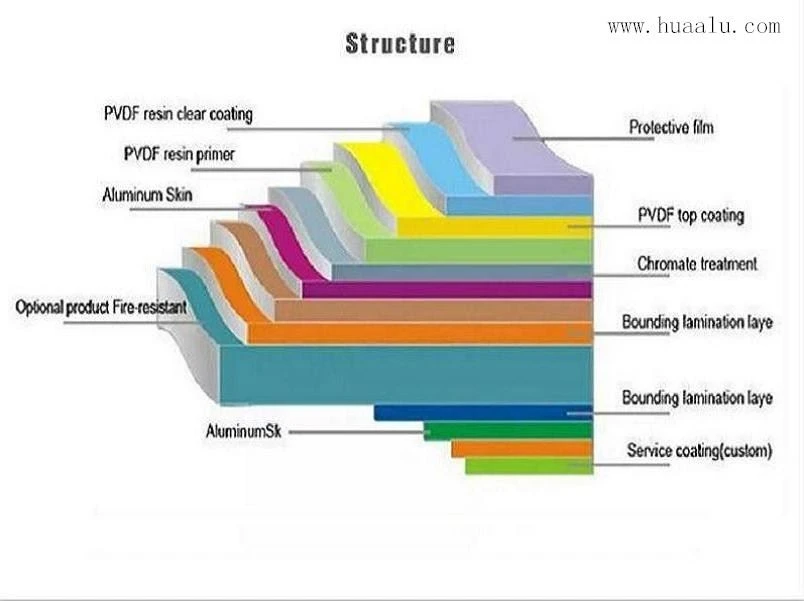

Basic Material
1. Front side: aluminum alloy sheet coated with fluorocarbon resin(PVDF) or polyester resin (PE)
roasting painting
2. Core material: nontoxic polyethylene, PE, FR, LDPE
3. Back side: aluminum alloy sheet coated with polyester resin painting(PE)
4. Characters of wall covering panels
a) Super peeling strength
b) Excellent surface flatness and smoothness
c) Superior weather, corrosion, pollutant resistance
d) Even coating, various colors
e) Fireproof, excellent heat and sound insulation
f) Superior impact resistance
g) Lightweight and easy to process
h) Easy to maintain, self-clean
Product features:
Low weight, high rigidity, perfect flatness

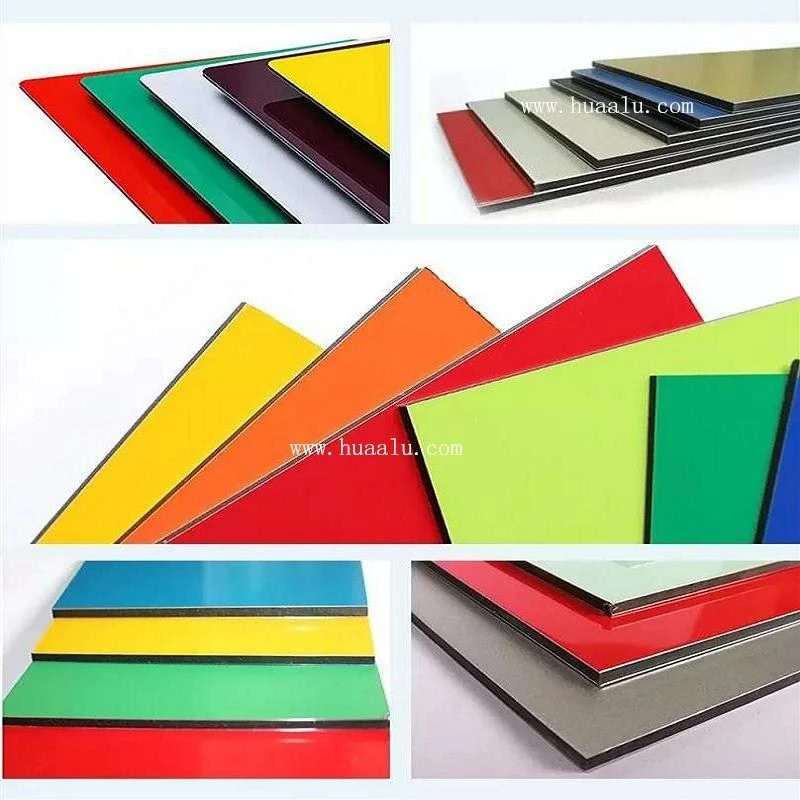

Large variety of colors
Weatherproof
Vibration-damping

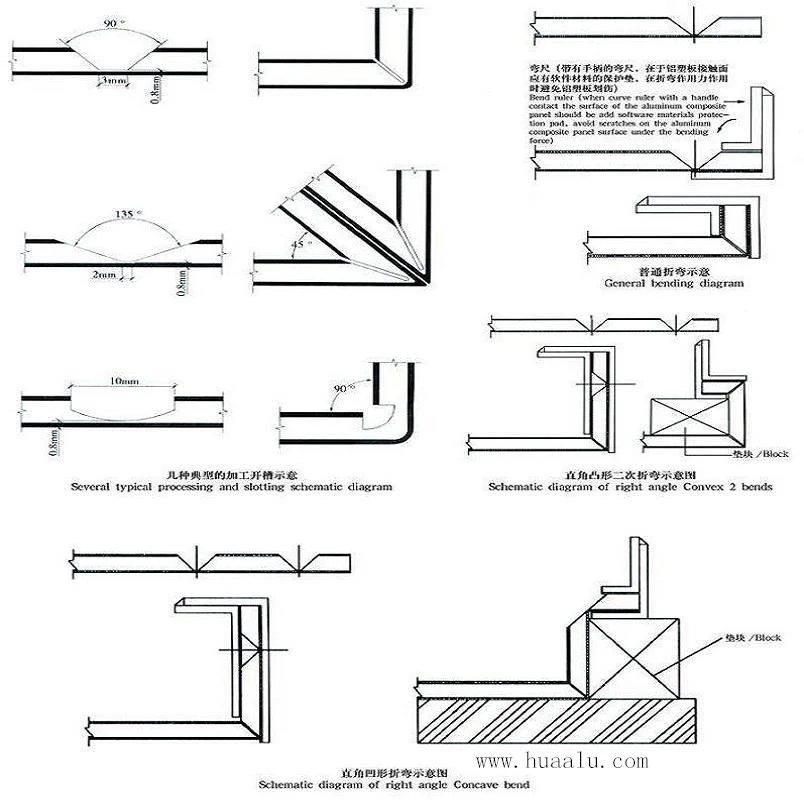

Can easily be folded and bent
Large panel sizes, fast installation, pre-fabricated panels
Lower maintenance costs
Long-term preservation of the building structure
In winter: savings in heating cost
In summer: savings in air-conditioning cost
Super peeling strength
Easy installation
Can last at least over 15 years
Applications:
Billboards

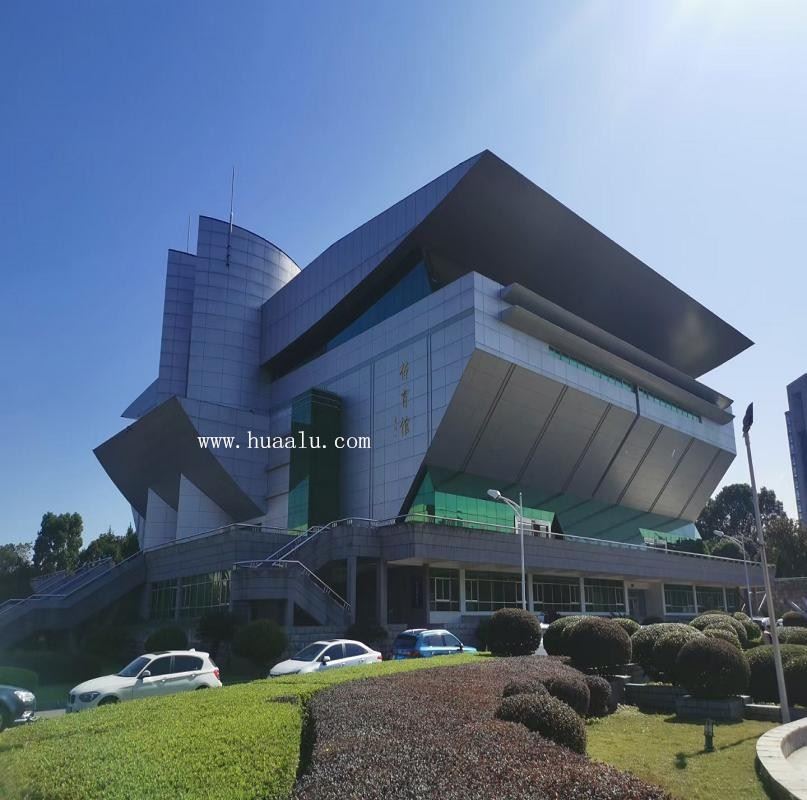

Cultural buildings wall curtain
Residential buildings curtains wallboards
Private housing wall panel
Healthcare buildings wall cladding
Leisure centers internal wall panel
Hotels inner decoration wall panel
Shopping worlds interior wall panel
Corporate identity design exterior wall cladding
Public transport buildings external cladding wall panel
Industrial and commercial buildings curtain wall
Teaching and research buildings external curtain wall
Company headquarters, office complexes, administration buildings cladding wall
