ACM Sign Panel, Digital Printing Panel, UV Digital Printing Panel, Graphics Panel, Sign Panel, Sign ACP, Premium Sign Panel
Huabond ACM panel is composed of a low-density polyethylene core and two aluminum sheets, has gone through a sophisticated bonding process involving chemical adhesive and high temperature. The painted surface of the aluminum sheet is coated with a wax-free high performance polyester coating. The painted surface is protected with a removable masking to prevent scratching.
Huabond can provide ACM panel for every projects including custom size and corporate identity colors. We supply high quality aluminum composite sign panels. They are excellent for flat sign panel applications.
Huabond flat printing sign panels have the following advantages and characteristics
- Great flatness
- Fine appearance
- Strong ink absorption
- Easy to peel and remove the protective film
- Easy to cut, route, bend
Specification of Flat Printing Sign Panel
Aluminum alloy | AA1100 series; AA3003 series |
Aluminum skin | 0.18mm, 0.21mm, 0.30mm |
Panel thickness | 2mm,3mm,4mm,6mm |
Panel width | 1220mm,1250mm,1500mm,2000mm |
Panel length | 2440mm,3050mm,4050mm |
Surface finishing | Polyester matt/matt, matt/gloss |
Back coating | Primer/white color |
Dimensional Tolerances
Panel width | ±2mm |
Panel length | ±3mm |
Panel thickness | Undefined±0.2mm |
Panel diagonal | ≤5mm |
Aluminum sheet thickness | ±0.02mm |
Technical Data
Paint thickness: 16-20 micron
Paint type: Polyester coating
Colors and surface: Solid color, anodized look， metallic color
Lacquer system: High gloss, satin finish, matt finish
Fire resistance: B-s1-d0 according to EN13501
Warranty: 8 year paint and delaminating warranty for white color, 3-5 years for other colors.
Application
- Post and panel signs
- Wall mount signs
- Gas station canopy
- Cladding and facades
- Store front signs
- Channel letter signs

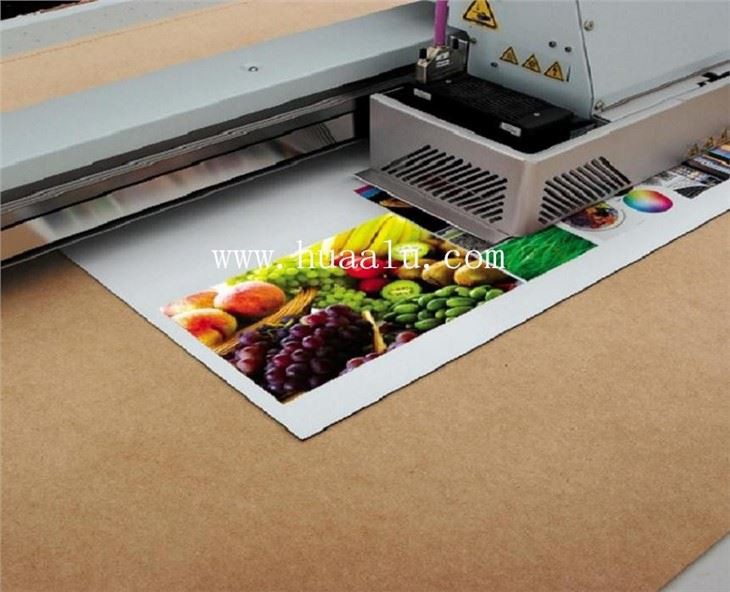

- Flat digital printing, screen-printing
- Advertisement board, display platforms and signboards
OEM Service
- We welcome OEM design and distribution in certain areas.
- We supply over 30 kinds of colors for customer to choose from. The special colors are also available upon request.
MOQ: 600sqm per color and specification
Price term: FOB Shanghai or CIF destination
Package: 1-nake loading; 2-simple polymer plate; 3-stronger wooden pallet with fumigation
Payment: T/T or L/C
Stronger wooden pallet with fumigation
