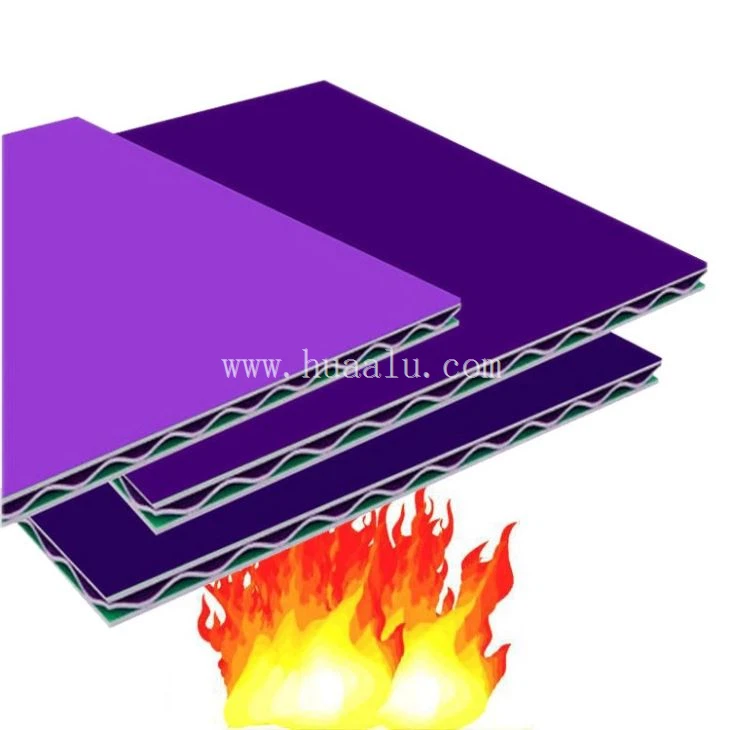

Aluminum Corrugated Core Panel / A2 exterior decoration wall panel
Overview
Quick Details
Place of Origin: Hunan, China Brand Name: Huabond Model Number: HTB-CC121 Usage: Outdoor Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated Product name: Aluminum Composite Core Panel (ACCP) Core: Aluminum wave core (ACCP) | Fireproof grade: A2 (ACCP) Thickness of the whole panel: 3mm/4mm (ACCP) Thickness of the aluminum sheet: 0-0.7mm (ACCP) Surface teatment Coating: PVDF / PE / NANO PVDF (for easy cleaning) Maximum Length: <=6000m (ACCP) Color: Customizied (ACCP) Standard Size: 1220mm*2440mm//1250mm*3200mm (ACCP) |
Supply Ability
Supply Ability:
20000 Square Meters per Day
Packaging & Delivery
Packaging Details
standard export wooden case
Port
Shanghai Port / Shenzhen port
The PVDF aluminium-plastic panel,resistant to acid, alkaline and ultraviolet light, is colorfast for over 15 years. It is also highly resistant to dirt and is easy to clean and maintain. The product is mainly applicable to exterior wall decoration and exhibits excellent weather fastness.
The PE polyester aluminium-plastic panel is characterized by strong paint film, high luster, good adhesion, and resistance to water, abrasion, and corrosion and is mainly applicable to interior decoration.
The art board aluminium-plastic panel exhibits bright and beautiful color, complex workmanship, graceful outline, and wonderful appearance. The product, serving as both decoration and artwork, diversifies interior decoration and gives prominence to the house owner’s luxury and generosity.
The emulation board series,showing a great variety of figures and colors, is similar to natural texture and seems to carry users to a wonderful nature once again.
The advertising boards are characterized by small size and light weight and can be sprayed with paint. It is mainly applied to the production of large outdoor advertising boards.
Product Name: NANO PVDF Aluminum Composite Panel
Surface coating:
Aluminum Alloy: AA1100series,AA3003series
Aluminum Skin: 0.3mm,0.40mm,0.45mm,0.50mm
Panel Thickness: 4mm,5mm,6mm
Panel Width: 1220mm,1250mm,1500mm
Panel Lengdth: up to 6000mm,special size on request
NANO PVDF Aluminum Composite Panel is a dirt repelling and self-cleaning panel which consists of a polyethylene core sandwiched between two aluminum skins.It has a hydrophobic and lipophobic surface,which makes it more repellant to water and dirt.The finished product stays clean for longer,can easily be cleaned with pure water.
Excellent easy-cleaning
Pollution resistance
Oil resistance
Good friction resistance
Strong Acid&Alkali resistance
Outstanding weather resistance
Base material:high strength aluminum alloy sheet
PE core material:non-toxic low density polyethylene
Surface coating:Nano-PVDF coating
Back coating:primer coating
Aluminum Core Panel
FREE SAMPLES
We provide free samples.
Huabond is a factory supplier. We offer Personalized customization.
Please send us ENQUIRY for details.
Product Introduction of the Aluminum 3D panel aluminum core panel
Regular Size: 1220*2440mm
Thickness: 3mm / 4mm
Weight: 3.4kg / m2 (3mm) 4.5kg / m2 (4mm)
Aluminum Core Composite Panel ACCP is the updated product from aluminum honeycomb panel and aluminum composite panel. Aluminum core composite panel is firmer and lighter than aluminum honeycomb panel with lower price. Besides, compare with aluminum composite panel, aluminum core composite panel fireproof strength is much better. There are no PE but aluminum, this is the reason why aluminum core composite panel is totally environmentally and fireproof. What's more, the appearance is various, no matter stone, wood or mirror could be processed. So Aluminum core composite panel could perfectly instead aluminum honeycomb panel and aluminum composite panel.
Detailed Images of the Aluminum 3D panel aluminum core panel
Technical Details of the Aluminum 3D panel aluminum core panel
Total Thickness | Surface Aluminum thickness | back aluminum thickness | Width | Length | Surface treatment |
3mm/4mm | 0.5-1.0mm | 0.4-1.0mm | 1200mm | ≤6000mm (regular 2440mm) | PE |
| PVDF | |||||
| Grain | |||||
| Stone | |||||
| Scratch | |||||
| Mirror |
Aluminum Core Panel compare with other material
Product | 4mm Aluminum Core Panel | 10mm Aluminum Honeycomb Pane | 6mm Corrugated Panel | 4mm Aluminum Composite Panel | 2.5mm Aluminum Single Panel |
Price | Simple | High | Simple | low | expensive |
Weight/m2 | 4.5kg | 6.6kg | 4.6kg | 7.0kg | 6.8kg |
Fireproof Degree | A2 | A2 | A2 | B1 | A2 |
Flatness | Best | Best | Better | Bad | Better |
Flattening strength | 0.85Mpa | >0.8Mpa | >1.5Mpa | / | / |
Pressing strength | 4.39Mpa | >0.8Mpa | >0.5Mpa | / | / |
Shear strength | 0.85Mpa | >0.5Mpa | / | 29Mpa | / |
Bending strength | 161.9Mpa | / | >100Mpa | 131Mpa | / |
Roller peel strength | 102.7 N.mm/mm | 50 N.mm/mm | 40 N.mm/mm | / |
Package detail
Product and Delivery of the Aluminum 3D panel aluminum core panel
Product details
About the products
1. Have the highest fire-retardant grade A2 FR.
2. Than aluminum honeycomb panels much cheaper.
3. Than aluminum solid panel lighter and flatter.
4. Than aluminum corrugated panels more durable.
5. Than aluminum composite panel toxic free and fire proof.
Class A2 FR Aluminum Composite Panel Technical Parameters | ||||
1 | NAME | New fire-retardant natural inorganic mineral material | ||
2 | Core components | New fire-retardant natural inorganic mineral material | Aluminum core | |
4 | Core thickness | 2-5mm | ||
5 | Core width | 900-2000mm | ||
6 | Calorific value(MJ/kg) | ≤3 | 2.3-2.4 | Pass |
7 | Smoke production within 600s | ≤50 | ≤48 | S1 |
8 | Flaming droplets | No flaming droplets | pass | d 0 |
9 | Toxicity. grade | Class ZA1 | pass | t 0 |
10 | Peel strength | ≥7N/mm | ASTM D 903 | pass |
Heat performance | 5.79Btu/hr.ft 2.0 F | ASTM C518 | pass | |
Tensile strength | ≥40Mpa | ASTM E8 | pass | |
Yield strength | ≥30Mpa | ASTM E8 | pass | |
Elongation | ≥3% | ASTM E8 | pass | |
DTUL | 211 ℃ | ASTM D 648 | pass | |
Tensile strength | ≥130N/MM2 | EN 485-2/ASTM E8 | pass | |
Yield strength | ≥90N/MM2 | EN 485-2/ASTM E8 | pass | |
Elongation | ≥5% | EN 485-2/ASTM E8 | pass | |
Limiting oxygen index (LOI) | ≥32 | IS: 13501 | pass | |
Toxicity | ≤1 | NCD-1409 | pass | |
Heat release rate(HRR) | R1(HL3) 50KW/M2 | ISO 5660-1 | pass | |
Tolerance range of panel specification | Thickness:±0.20mm | Width:+2.0mm | Width:+2.0mm | |
Pass the standard of EN13501-1:2007+Al:2009 by Intertek, also pass the test of SGS, BV, etc. | ||||
Comparision of ACCP and the existing metal curtain wall material
Name | Weight/㎡ | Fire | Flatness | Tensile | Flatwise | Bending | Peel |
ACCP-4mm | 3.6kg | Level-AQ2 | Excellent | 0.85Mpa | 1.97Mpa | 186.5 | 187.9 N. |
Aluminum honeycomb | 6.6kg | Excellent | Excellent | >0.8Mpa | 0.8Mpa | No | 50N. |
Aluminum corrugated | 4.6kg | Excellent | Good | >1.5Mpa | >1.5Mpa | >100Mpa | 40N. |
Aluminum composite | 6.8kg | B1&A2 | Poor | No | No | 131Mpa | No |
Aluminum solid | 6.8kg | Excellent | Poor | Excellent | No |
Is the wall entirely non-combustible? Would it perform long-term(without the cladding)as the building's BCA compliant external wall?
ACCP-this means the cladding is considered an "attachment" and your aluminum clading with a "FR","PLUS",or "A2" grade core is more than likely considered compliant!
What is ACCP?
With the innovation of core technology, HUABOND® A2 has developed A2+ non-combustible aluminium sandwich panel for strict requirements of fire retardancy regulations in architecture products.
Aluminum Core Composite Panel ACCP is an improved honeycomb panel that does not incur the expensive unit price of aluminum honeycomb panel but much lighter and slimmer than the latter. It is fully composed of aluminum, 100% environmentally friendly and A2 Grade fire resistant. It has the feature of easy fabrication like aluminum composite panel. Additionally, the perfect surface presentation can be shown as a stone-like, wood-like or brush surface.
Physical Data
Compared to traditional fire-proof aluminium sandwich panel, HUABOND® A2® A2+ is all the same but the technology of the core, which is composed of 100% profiled lattice aluminium structure rather than mineral core.
This structure assures the panel of non-combustibility and makes it more reliable and popular in all façade applications, especially in UK (BS 476-6 standard) and Australia (AS 1530.1 standard) who have higher requirements and demands on fire retardancy.
Superior feature
1. Light weight, Good rigidity, high strength and safety
The aluminum honeycomb panel weight is only 1/70 of that for bricks and 1/3 of that for stainless steel.
2. Super Flatness and Rigidity
The special hexagonal structure of aluminum honeycomb panel is composed of many dense hexagonal cells and these cells are similar to many I shapes, which averagely take the pressure from the panel surface. The property assures the high compression strength and super flatness over a large area.
3. Fireproofing Properties
Tested by National Research Center of Testing Techniques For Building Materials, the properties of Aluminum Honey comb Composite Panels meet the requirement of non-flammable materials. According to GB-8624-1997 Standard, the aluminum honeycomb panels fireproofing grade is GB-8624-B1 Grade.
4. Sound Insulating, Heat Insulation, Heat Preservation
Between the two skins are divided into many closed and independent cells, which to a great extent limit the transmission of sound wave and heat.
5. Moisture resistance, Corrosion Resistant
The Aluminum honeycomb Panel surface skins are manufactured through roller-coating techniques, thus anti-anodizing, color-stable and no going moldy and deforming. According to testing, the aluminum honeycomb panel remains intact after immersed in 2% HCL solution or in saturated Ca(OH)2 Solution for 24 hours.
6. Environmentally Friendly
High quality aluminum single solid panel for ceiling could be recycled absolutely which is different with other material. And aluminum honeycomb panels does not emit any hazardous gas and easy to be cleaned and also easily recyclable.
Aluminum facings:3003 H24 Aluminum Coil
Panel core: Aluminum wave core
Total Thickness | Top Alu Skin Thickness | Bottom Alu Skin Thickness | Width | Length | Surface Finish |
4mm | 0.5-1.0mm | 0.4-1.0mm | 1250mm (recommend) | ≤6000mm; 2440mm (recommend) | PE |
| PVDF | |||||
| *1500mm | WOOD | ||||
| STONE | |||||
| NANO | |||||
| *1220mm | SPECTRA | ||||
| BRUSH |
Minimum Order: 800m2/width/color for the standard width.
Minimum Order: 1500m2/width/color for customized width. Customized width is marked with " * "
