Overview
Brand Name: HUABOND®
Model Number: H-H108
Usage: Outdoor
Place of Origin: Hunan, China
Warranty: More than 15 years
After-sale Service: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
Size: 1220*2440mm
Aluminum coil thickness: 0.8mm, 1mm, 1.2mm, 1.5mm
Panel thickness:6mm/8mm/10mm/12mm/15mm
The thickness of the core: 0.04mm-0.06mm
Length of the core: 5-6mm
Weight: 3~7kg/sqm
Back skin thickness: 0.6-1.0mm
Aluminum alloy: 3003 series/5052 series
Project Solution Capability: total solution for projects
Application: Apartment
Design Style: Modern
Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof
Surface Treatment: Anodized, Brushed, PE Coated, PVDF Coated

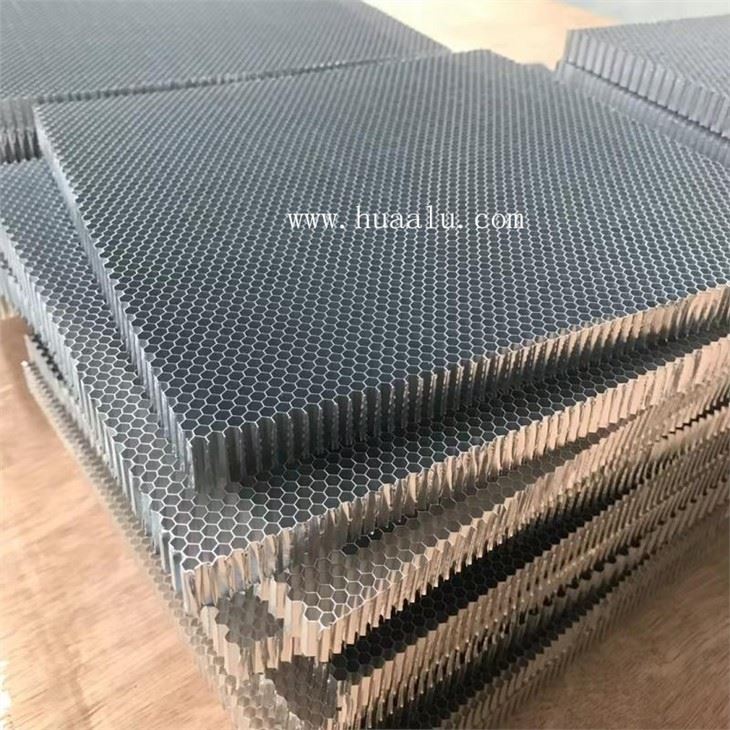

Core material: Hexagonal Aluminum honeycomb core
Surface treatment: PVDF/Polyester surface finish
Supply Ability: 9000000 Square Meter/Square Meters per Year aluminum honeycomb
Packaging Details: bulk or in pallets
Port: Guangzhou port, China
Aluminum honeycomb features
When applications require a lightweight, high strength composite panel, aluminum honeycomb panels are often the best solution. The cell size, grade of aluminum, depth of the material, and thickness of the cell wall are all variable that can be specified to create a honeycomb panel with the best properties for your application.
1.Extremely Low Weight;
2.Excellent Strength;
3.High Resistance to Moisture;
4.High Resistance to Corrosion;
5.Excellent Thermal Conductivity;
6.Noncombustible;
7.High Resistance to Fungi;
Product Description
Fire resistant high density cheap price aluminum honeycomb panel

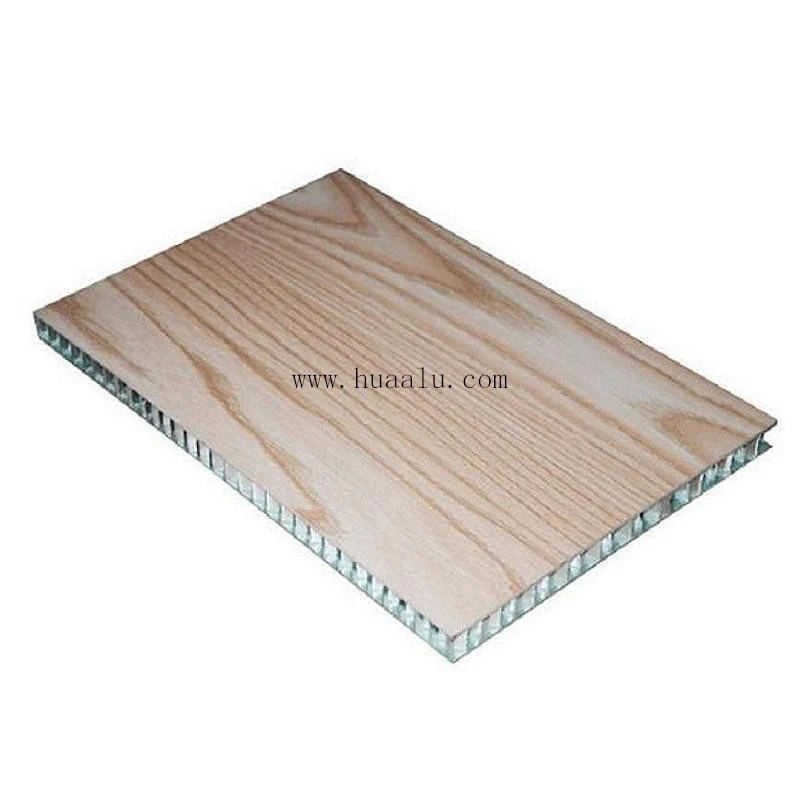

Aluminum honeycomb is a sort of sandwich panel consisting of two aluminium plates as face panels and hexagonal aluminium honeycomb cell as core materials, bonded together by aviation-purpose glue or macromolecule lamination film. The surface of the HUABOND® aluminum honeycomb panels are made of aluminum alloy plates roller coated with PVDF or Polyester (PE) according to the purpose.
The Panels are roller coated with 70% Fluorocarbon Knyar 500 PVDF resins which are procured from world renowned paint suppliers such as Beckers ®, PPG ® etc. The rear sides of all Panels come with a Mill Finish, Polyester Premier coating or a Full Polyester Coating(Optional).
Aluminum honeycomb Specifications | |
Brand | HUABOND® |
Panel Width(mm) | max to 2000mm |
Panel Length(mm) | 2000mm~5000mm |
Panel thickness(mm) | 6mm/8mm/10mm/12mm/15mm (Standard 10mm/12mm/15mm) |
Aluminum Alloy | AA3003 series,AA5052 series |
Aluminum coil thickness | 0.7mm,0.8mm,1mm,1.2mm,1.5mm |
Surface treatment | PE coated or PVDF coated |
Paint coating | 22um to 25um |
Weight(kgs) | 3.0-7.0kgs/sqm |
Color | RAL, PANTONE,HUABOND® color chart or customers' requirement |
PE core material | aluminium honeycomb board |
Back coating | primer coating |
Base material | high strength aluminum alloy sheet |
Delivery time | 3-15 working days after the deposit |
Packing | FCL, In bulk, LCL, In wooden pallet package or according to customers' requirement |
Aluminum honeycomb application
Honeycomb Panels are well known for their strength and lightness. The aluminium honeycomb core, the nature’s best architectural design makes the panel strong and meanwhile it remains as a light weight panel. Available in different thicknesses for core and skin, the honeycomb core material is available with aluminium and polypropylene materials. It is widely used in the buildings and the other fields.
1. Road barriers to reduce road noise for residential areas;
2. Inside marine engine rooms to reduce noise pollution;
3. Railways and Stations;
4. Construction Panels for building work;;
5. Architectural;
