Basic Info.:
Trademark: HUABOND®
Model NO.：H-H116
Metal: Aluminum
Finish: Weathering
Alloy: 1100 3003 3005 5005 5052
Skin Thickness: 0.5mm-1.2mm
Total Thickness: 5mm-50mm
Specification: 1500x2440x25mm
Coating: PVDF or PE
Other Surface: Copper, Stainless Steel, Fiber, glass Zinc
Application: Architectural Cladding Roofing, Truck Box, Boat, Train, Plane, Furniture, Facade, Curtain Wall, Cladding
Transport Package: Wooden Packing
Origin: Hunan, China
HS Code: 7606 1191
Product description:

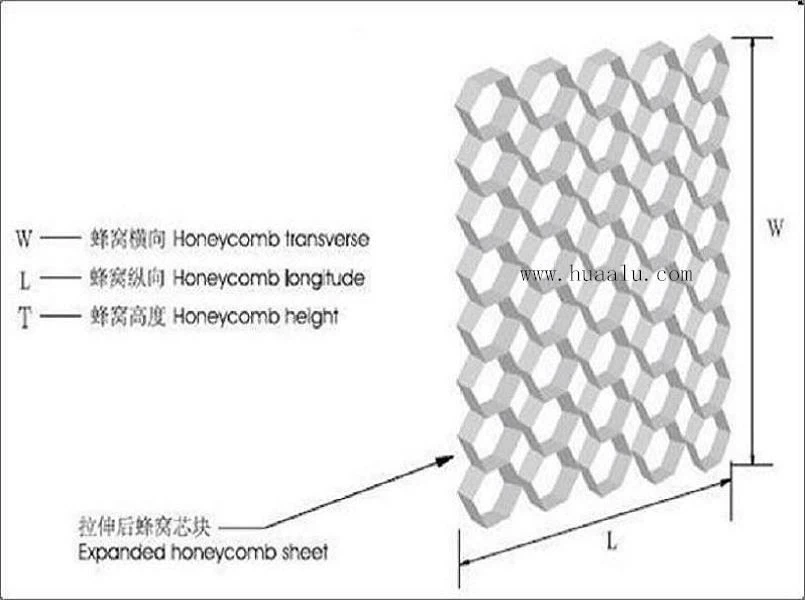

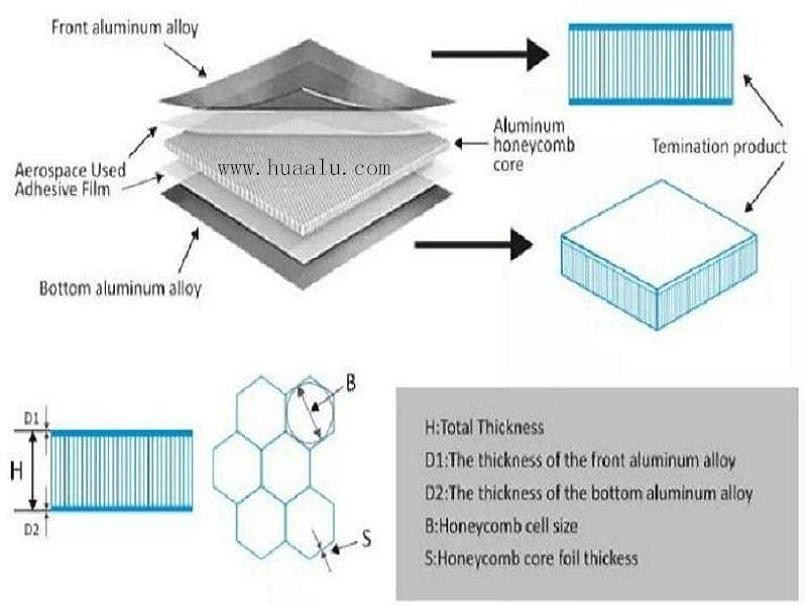

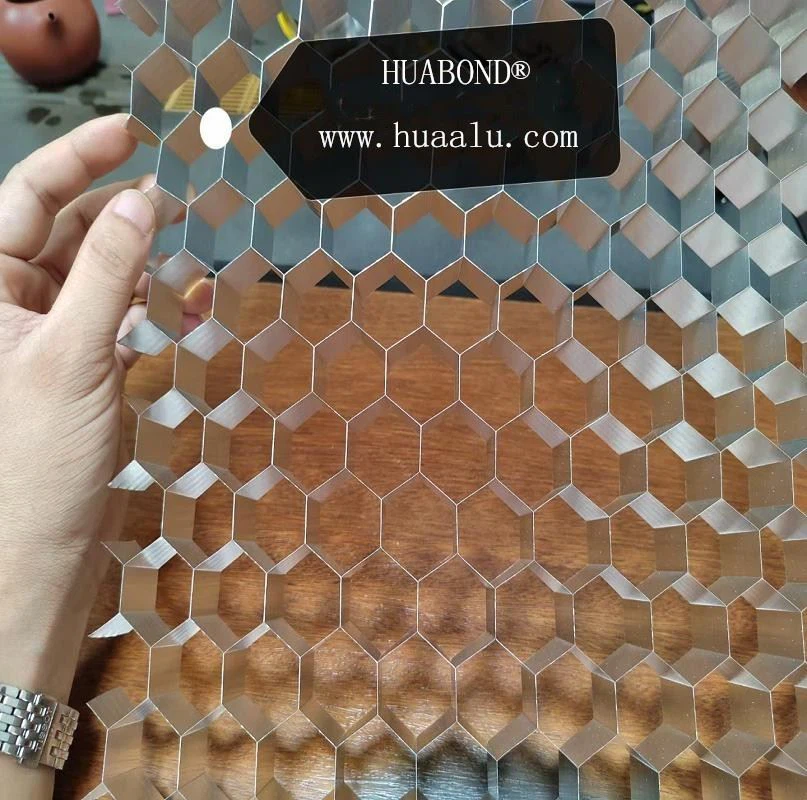

The aluminum honeycomb core is bonded by multiple layers of aluminum foil, laminated, and then stretched to form a regular hexagonal honeycomb core. The aluminum honeycomb core has sharp and clear cell walls without burrs, and is suitable for bonding high-quality core-to-surface materials and other applications. In addition, because of its small, open, straight and dense core, it can be used in electromagnetic shielding materials, photo catalyst filters, heater lattice grids, lighting grilles and precision instruments.
Core material: Aluminum
Size: customized as required
Specification: aperture 0.7MM-5.20MM
Shipping form: strip type, stretch type
Application: Building curtain wall, interior decoration, honeycomb panels for locomotives, honeycomb cores for ships, clean panels, photo thermal solar back panels, printed table panels, collision walls for automobile crash tests
Specifications:
1. Aluminum alloy material: A3003H18 / 5052H18
2. Hole length (mm): 1.0, 1.5, 1.83, 2.0, 2.5, 3.0
3. Aluminum foil thickness: 0.025-0.08mm, 0.1mm
4. Delivery status: stacked block, cut strip or unfolded size (with pinhole or without pinhole)
5. Honeycomb core thickness: 3.0mm to 500mm
Advantages:
1. Full product ranges covering different types of sandwich panels including composite panels and honeycomb panels.
2. We can laminate different types of metals including aluminum, copper, zinc, stainless steel, steel etc.
3. We are strong in the production of FR B1 grade and A2 grade composite panels, with fast production speed and good cost. Full scale of test reports and certificates available.
4. Modern new factory with brand new production lines.
