Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
HUABOND
Model Number:
HTB-H108
Usage:
Outdoor
Function:
Fireproof
Surface Treatment:
Anodized, Brushed, Mirror, PE Coated, PVDF Coated
Thickness:
6-200mm
standard size:
1220x2440mm; 1500x2440mm
Other sizes:
width to 2500mm; length to 10000mm
Color: RAL colors
FR certificate:
EN13501-1; BS476 pt4, 6&7
MOQ: 200m2
Supply Ability: 1000000 Square Meter/ per Year
Packaging Details: wooden case & plywood pallet
Port: Guangzhou, China
Lead time :
18-25 days

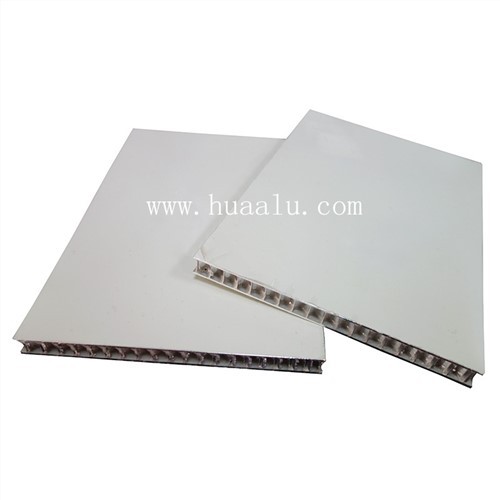

lightweight honeycomb panels is a sandwich panel bonded with aluminum face material and with a core in aluminium honeycomb. It offers high mechanical properties and good fire performances.
TOP ALUMINIUM SKINS Thickness in mm:
0,5 - 0,7 - 1 (standard)
Special thickness according to customers’ requirements
ALUMINUM CORE
Hexagonal cells, Alloy series 3003
Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”
Foil thickness: from 50 to 70 microns
BOTTOM ALUMINUM SKINS Thickness in mm:
0,5 - 0,7- 1 (standard)
Special thickness according to customers’ requirements
On request: Special alloys, treatments and coating with RAL colors
lightweight honeycomb panels Specifications :
Total Thickness: 6mm-200mm
Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm
Standard size: 1220x2440
Other size on request
Colors: RAL colors
Min. order quantity: 10m2
Quality Warranty: 20 years
Company Certificate: ISO9001:2008, ISO14001:2004
Fire-rated certificate: EN13501-1; BS476 part4, 6&7, Chinese B1
