Quick Details:
Place of Origin: Changsha, China
Brand Name: HUABOND®
Usage: Indoor, outdoor
Panel Thickness: 12mm/15mm / 20mm/ 30mm
Regular Size: 1220*2440mm
Aluminum Thickness: 0.8mm-1.2mm
Core material: 0.35mm aluminum core
Aluminum Alloy Grade: 3003 H24
Single package size: 21X27X5 cm
Single gross weight: 1.500 kg
Fireproofing Properties: A2 GRADE
Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated
Function: Anti-Static, Antibacterial, Fireproof, Mold-Proof
Package Type: fumigated seaworthy
Sample: Provide free Sample

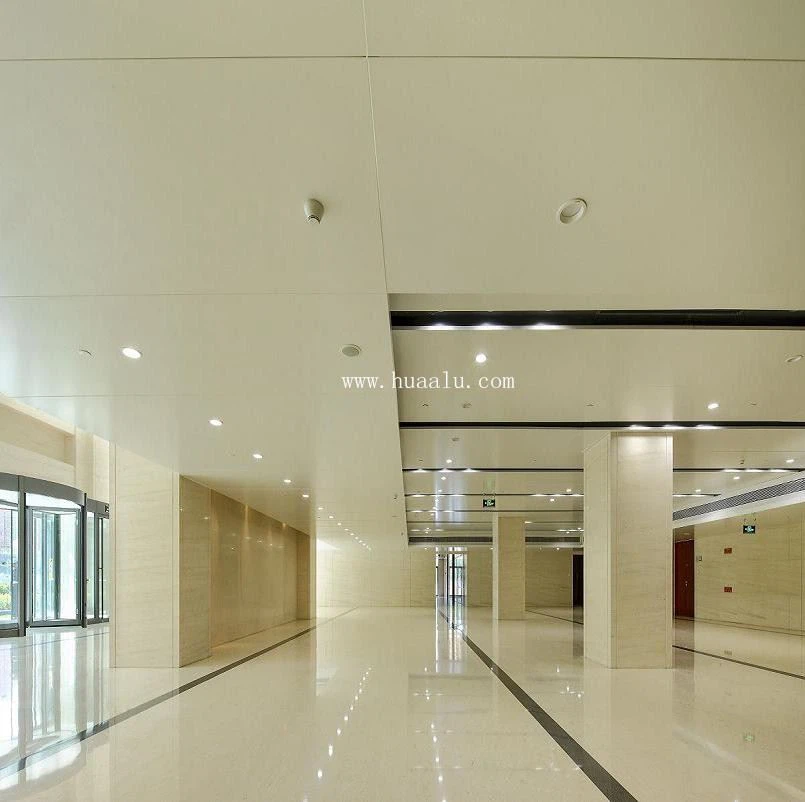

Application: wall cladding
Selling Units: Single item
Coating: PE, PVDF
Features |
a) Light weight, Good rigidity, high strength and safety The aluminum honeycomb panel weight is only 1/70 of that for bricks and 1/3 of that for stainless steel.

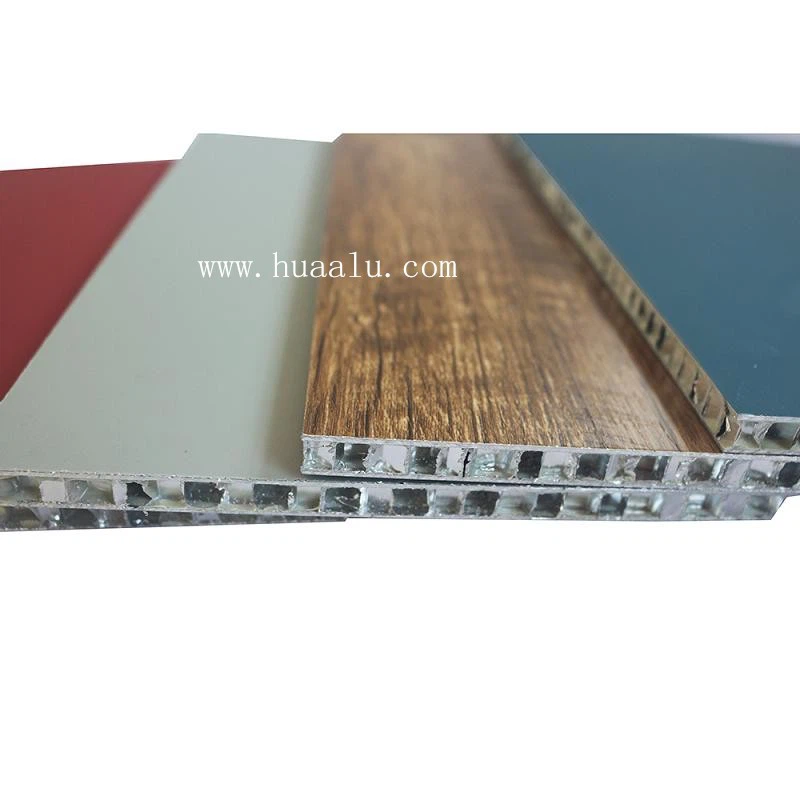

b) Super Flatness and Rigidity The special hexagonal structure of aluminum honeycomb panel is composed of many dense hexagonal cells and these cells are similar to many I shapes, which averagely take the pressure from the panel surface. The property assures the high compression strength and super flatness over a large area.
c) Fireproofing Properties Tested by National Research Center of Testing Techniques For Building Materials, the properties of Aluminum Honey comb Composite Panels meet the requirement of non-flammable materials. According to GB-8624-1997 Standard, the aluminum honeycomb panels fireproofing grade is GB-8624-B1 Grade.
d)Sound Insulating, Heat Insulation, Heat Preservation Between the two skins are divided into many closed and independent cells, which to a great extent limit the transmission of sound wave and heat.
e)Moisture resistance , Corrosion Resistant The Aluminum honeycomb Panel surface skins are manufactured through roller-coating techniques, thus anti-anodizing, color-stable and no going moldy and deforming. According to testing, the aluminum honeycomb panel remains intact after immersed in 2% HCL solution or in saturated Ca (OH)2 Solution for 24 hours.
f)Environmentally Friendly High quality aluminum single solid panel for ceiling could be recycled absolutely which is different with other material. And aluminum honeycomb panels does not emit any hazardous gas and easy to be cleaned and also easily recyclable. |
Product | 4mm Aluminum Core Panel | 10mm Aluminum Honeycomb Panel | 6mm Corrugated Panel | 4mm Aluminum Composite Panel | 2.5mm Aluminum Single Panel |
Price | Simple | High | Simple | low | expensive |
Weight/m2 | 4.5KG
| 6.6KG | 4.6KG | 7.0KG | 6.8KG |
Fireproof Degree | A2 | A2 | A2 | B1 | A2 |
Flatness | BEST | BEST | BETTER | BEST | BEST |
Flattening strength | 0.85Mpa | >0.8Mpa |
>1.5Mpa | / | / |
Pressing strength |
4.39Mpa |
>0.8Mpa |
>0.5Mpa | / | / |
Shear strength |
0.85Mpa |
>0.5Mpa | / |
29Mpa | / |
Bending strength |
161.9Mpa | / |
>100Mpa |
131Mpa | / |
Roller peel strength |
102.7 N.mm/mm |
50 N.mm/mm |
40 N.mm/mm | / | / |
