Wood aluminium composite panel / Wooden Granite aluminum composite sheet / Wooden finish aluminum sandwich board / Cladding Wall Wood Texture Finish ACM
Overview
Quick Details
Size: 1220x2440mm or Customized Place of Origin: Hunan, China Brand Name: Huabond Model Number: HTB-A622 Usage: Indoor Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated, Wood grain Aluminum Composite Panel Product name: Wood Texture Grain Finish Aluminum | Composite Panel Panel thickness: 2/3/4/5/6/7/8/9/10/11/12/13mm Aluminum Thickness: 0.05-0.5mm Material: Aluminum and HDPE Color: Customer's Requirements Coating: PE PVDF NANO Application: Building Exterior Wall Certificate: CE/SGS/ISO9001 MOQ: 600 Sqm Feature: A2 Grade Fireproof |
Supply Ability
Supply Ability:
20000 Square Meters per Day Wood Texture Grain Finish Aluminum Composite Panel
Packaging & Delivery
Packaging Details
Wood Texture Grain Finish Aluminum Composite Panel packaging:
1/ Wooden Pallets
2/ Loading Quantity: 20' container can load 3000 sqm, 40' container can load 4000sqm
Port
Shanghai port
Lead Time:
Quantity(Square Meters) | 1 - 3000 | >3000 |
Est. Time(days) | 18 | To be negotiated |
Wooden ACP, Alucobond, Aluminum Composite Sandwich Panel
Product Description
Wooden Face Aluminum Composite Panel:
Wooden face ACP usually are used for interior wall decoration, both PE coating and PVDF coating are available.
Products Specifications:
Aluminum Thickness | Panel Thickness | Coating | Width | Length | Colors |
0.06mm to 0.30mm | 2mm | PE | 1220mm 1250mm 1500mm 1570mm 2000mm | Less Than 6000mm | More Than 100 Colors Available |
0.06mm to 0.50mm | 3mm | PE | |||
0.06mm to 0.50mm | 4mm | PE | |||
0.06mm to 0.50mm | 5mm | PE | |||
0.06mm to 0.50mm | 6mm | PE |
Application:
a. Building interior & exterior wall cladding |
b. Decoration and renovation on old buildings |
c. Corridor, Ceilings, Bathrooms, Kitchens and Balconies decoration |
d. Shop door decorations |
e. Advertisement board display platforms and signboards |
f. Wallboards and ceilings for tunnels |
g. Accessory material for vehicles and boats |
Feature:
● Excellent rigidity and impact resistance
● 3D fresh natural wooden visual impression
● Acid-resistant and alkali-resistant
● Light weight, easy to installation
● Easy for clean and maintenance.
Surface properties
Paint Thickness(micron) | Anodize |
Pencil Hardness | 2H |
Toughness Of Coating | 2T |
Temperature Resistance | -50°C+90°C |
Impact Strength(kg/cm2) | 50 |
Boiling Water Resistance | boiling for 2 hours,No change |
Acid Resistance | Immerse surface in 2% HC1 for 24hours,No change |
Alkali Resistance | Immerse surface in 2% NAOH for 24hours,No change |
Oil Resistance | Immerse surface in 20# engine oil for 24hours,No change |
Solvent Resistance | Cleaned 100 times with Dimethyl benzene, No change |
Cleaning Resistance | >1000 times no change |
Thermal Expansion | 2.4mm/m @100°C Temp difference |
Peel Strength | Average 131N.mm/mm |
Bending Strength | >100MPA |
Bending Elastic Modules | >2.0*104MPA |
Heat Distortion Temperature | >95°C |
Panel Width | 1220mm,1250mm,1500mm,1550mm,2000mm(maximum) |
Panel Length | 5800mm |
Standard Size | 1220×2440mm,Customized Accepted |
Panel Thickness | 2mm,3mm,4mm,5mm,6mm |
Aluminum Thickness | 0.05mm to 0.50mm |
Aluminum Alloy | AA1100, AA3003, AA5005 ... |
Coating | PE Coating, PVDF Coating, FEVE coating, NANO coating |
PE Core | Recycle PE Core, Fireproof PE Core, Unbreakable PE Core |
Color | Metallic, Solid, Glossy, Pearl, Brushed, Mirror, Granite, Wooden |
Delivery Time | Within 14 days after receiving deposit |
MOQ | 600 SQM |
Payment Terms | T/T,L/C |
More Services | OEM, Free Samples, Color Matching |
Basic Material |
1) Front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE) roasting painting |
Characters |
a) Torsion Strength High resistance to pressure and force exertion; High flexibility; No damages to paint layer when curved; Resistant to corrosion even by sand storm; b) Easy Processing & Installation Easy to process due to its light weight; Superior constructability make it easy to cut, plan edge, bend and form with simple tools; c) Thermal Resistance Huabond ACP’s have insulating properties that prevent heat to penetrate structures, which translates into energy savings; d) Fire Resistance PE plastic core plate is adopted as the flame retarding substance in between difficult-combustible aluminum layers; Fireproof ability is higher than B1 grade standard; e) Weather Resistance PVDF coating(KYNAR-500)material provides good weather ability. The surface will not be damaged under any climate; Color will last longer; f) Even Coat &Various Colors Huabond ACP’s use advanced film technology, making the joining of paint and panel strong and uniform; Diversity of colors can satisfy your different requirements; g) High Impact Resistance Innovative composite production of viscoelastic core fused with durable aluminum membranes provides high impact and breakage resistance; Huabond ACP is strong and rigid; h) Peel Strength Advanced technology is applied in Huabond ACP’s which enhances the key factor, peel strength, to an excellent condition; Planeness of panel has been largely improved; i) Sound Resistance The unique non-combustible polyethylene core of Huabond ACP’s provides sound reducing properties better than other materials such as wood and steel; j) Easy to Maintain Huabond ACP’s enjoy the advantage of self-cleaning; Neutral detergent and water are enough to keep it clean; |
Panel Width | 1220mm,1250mm,1500mm,1550mm,2000mm(maximum) |
Panel Length | 5800mm |
Standard Size | 1220×2440mm,Customized Accepted |
Panel Thickness | 2mm,3mm,4mm,5mm,6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm |
Aluminum Thickness | 0.05mm to 0.50mm |
Aluminum Alloy | AA1100, AA3003, AA5005 ... |
Coating | PE Coating, PVDF Coating, NANO Coating |
PE Core | Recycle PE Core, Fireproof PE Core, Unbreakable PE Core |
Color | Metallic, Solid, Glossy, Pearl, Brushed, Mirror, Granite, Wooden |
Delivery Time | Within 18-22 days after receiving deposit |
MOQ | 600 SQM |
Payment Terms | T/T,L/C |
More Serivers | OEM, Free Samples, Color Matching |
Huabond is a leader in the field of domestic and international wall decoration materials integrating production, trade and service . With development of 26 years, we built a new factory (over 150,000 square meters) in 2018 and become the TOP3 of aluminum composite panel manufacturer in China. Welcome to visit.
There are 4 production lines include automatic aluminum-plastic compositing lines and
color coating lines, also several numerical control aluminum solid panel process equipment imported from Canada, and it is tested and controlled by the world-class level Japanese "Lan’s" X Y full range light speed testing facility. Furthermore, Huabond established the modern lab with entire functions and advanced testing facilities.
Aluminum-plastic composite panels, colored aluminum-plastic panels, fire-resistant aluminum composite panels, aluminum-plastic panels for advertising printing, fluorocarbon aluminum veneers, aluminum. Honeycomb panels, aluminum ceilings, metal veneer insulation panels and other products.
The company has established a first-class testing center in China, and has developed information management subsystems such as quality management, test management, quality inspection, measurement management, physical and chemical analysis management, etc., to meet the requirements of the company's high quality management level.

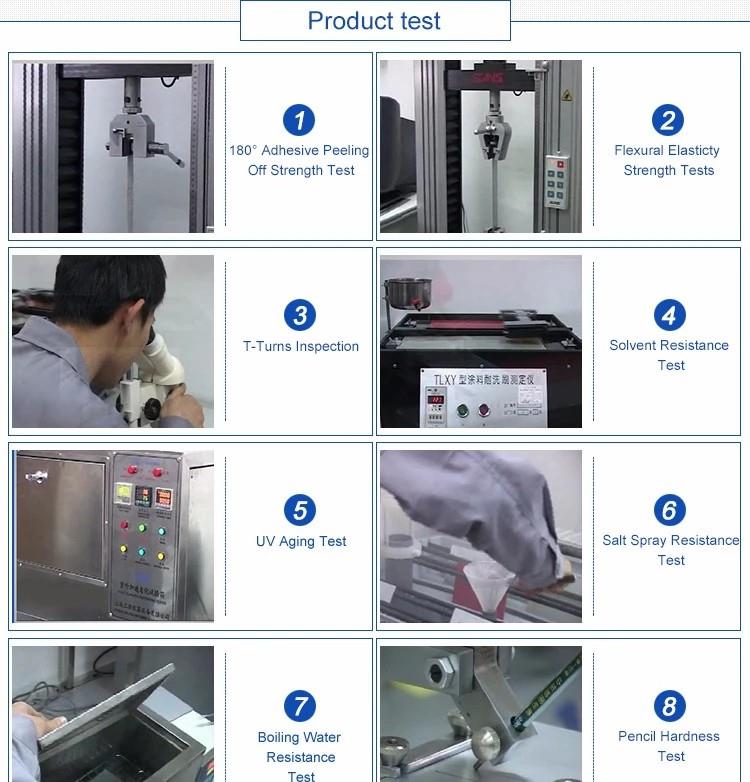

The testing center has the functions of testing, research and development of various products of the company. Mirror gloss meter, film pencil scratch hardness tester, digital display electronic tensile tester, visual colorimeter, analytical balance, paint film conflict tester, solvent-resistant wiper, adhesion tester, UV acceleration Aging test chambers, salt spray corrosion test chambers and other equipment, from high-level leaders to every employee, focus on continuous improvement of quality concepts, and build the company's "quality core" culture.
FAQ
Q: What is your MOQ, Delivery Time, Warranty, Payment, Production capacity?
A: 1. MOQ (Minimum Order Quantity): 600 m2 PE coating common colors; 1000 m2 PVDF coating and special colors.
2. Delivery Time: within 18 to 22 days after contract confirmed and deposit payment received.
3. Warranty: PVDF KY coating – 20 years for outside use; Polyester (PE) coating –5 years for outside use, 10 years for inside use.
4. Payment: 30% TT in advance, 70% see copy of BL.
5. Production Capacity: 20,000 m2 per day basic on 1220 * 2440mm 3mm thickness.
Q: Do you have any test certificates?
A: Yes, stable good quality is a key for long time business cooperation.
Factory has passed ISO9001: 2008 QUALITY SYSTEMS; ISO14001: 2004 ENVIRONMENTAL SYSTEMS; OHSAS18001: 2007 HEALTH SYSTEMS; our products have passed SGS, SGS-FR; A2 FR etc.
Q: Where have your HUABOND aluminum composite panel been export?
A: Our factory was established in 1994; have already exported to USA, Canada, Mexico, Brazil, Chile, Panama, Europe Market, Australia, New Zealand, the Mid-east Countries, Southeast Asia and Africa.
Q: Do you service OEM?
A: Yes, OEM accepted. Just give us your logo, we will send some protective film design for your choice. And 300 USD should be paid for the first order, which will be returned back in the 5th containers order.
Q: What's the available panel size and thickness?
A: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm 2000mm are recommended.
2. Length: accept customized length, recommend 2440mm, 3050mm, 4050mm, 5000mm.
3. Panel Thickness: 2mm-16mm; recommend 3,4mm.
4. Aluminum thickness:0.10-0.5mm, such as 0.21mm, 0.30mm, 0.40mm, 0.50mm.
Q: What is the minimum order quantity?
A: 600 square meters for aluminum composite panel.
Q: What is delivery time?
A: 18-22 days after deposit, except for public holidays.
Q: How can you guarantee the quality?
A: We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC .
Q: How long can I get a quote?
A: The quotation can be provided not long than 24 hours on condition that we know all detailed requirements.
Q: Can I get a sample?
A: Yes we offer free samples. Delivery cost is to be paid by clients.
Q: Can you provide OEM service?
A: Yes, we can produce under your own brand name. Logo and design need to be provided so as to make customized brand name.
Q: Can I buy installation accessories from you?
A: Yes, we provide all installation accessories. Please contact with our professional sales team.
