Lightweight, high-strength, Class A fire-resistant, and 100% recyclable, this "sandwich" structural material is redefining curtain wall standards.
In today's building curtain wall industry, a "sandwich" structural material originating from aerospace technology is quietly changing the industry landscape-aluminum honeycomb panels.
According to statistics, the output value of aluminum honeycomb panel curtain walls has increased from 12% of the overall metal curtain wall market in 2020 to 19% in 2025, showing a rapid growth trend. What is its magic that makes more and more architects and owners choose it as their first choice for curtain walls?
01 Structural Demystification: A Revolutionary Design Brought by Bionics
The inspiration for aluminum honeycomb panels comes from the hexagonal structure of a honeycomb-one of the most material-efficient and strongest structures in nature.

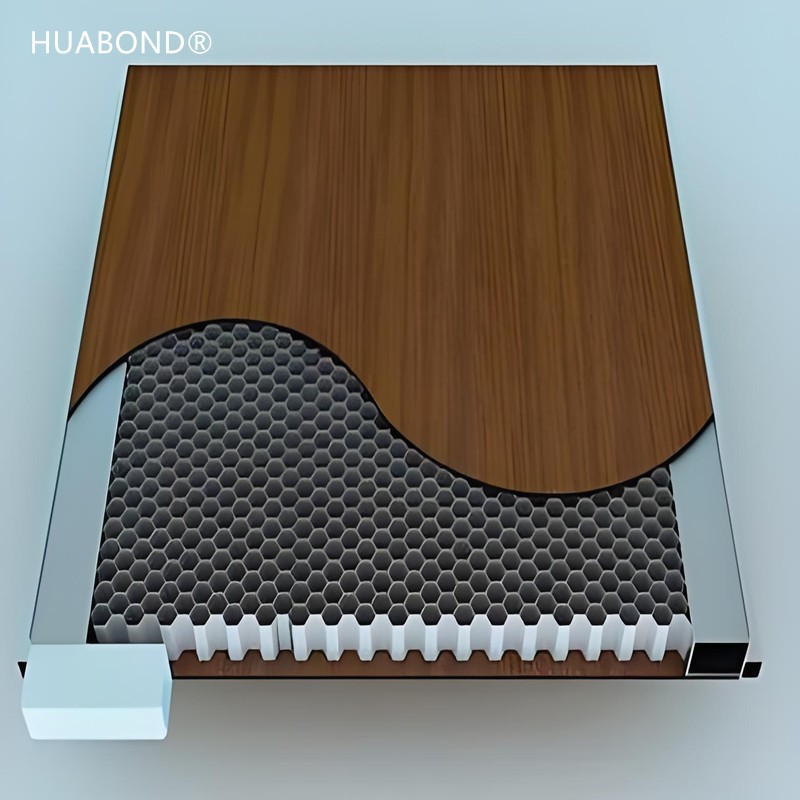

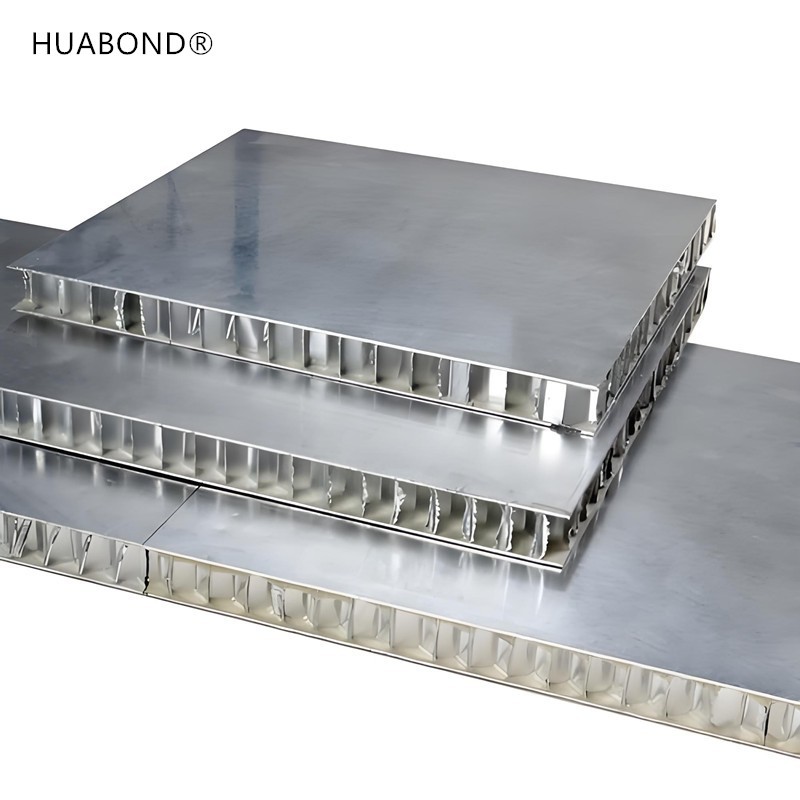

It consists of two layers of aluminum panels and a central aluminum honeycomb core, bonded together with high-strength aerospace adhesives. This structure allows the panels to achieve remarkable rigidity with an extremely light weight.
Key Parameters at a Glance:
- Surface Density: 5.5-7.5 kg/m², only 1/5 the density of a solid aluminum panel of equivalent rigidity
- Overall Thickness: 10-25mm optional
- Flatness: High-quality products have a warpage ≤1.5mm/m
- Peel Strength: National standard requirement ≥7N/mm, leading companies can achieve over 10N/mm
This combination of rigidity, lightness, flatness, and stability makes aluminum honeycomb panels highly advantageous in large-area curtain wall applications.
02 Six Core Advantages: More Than Just "Lightweight"
① Lightweight: Reducing the Burden on Buildings
Aluminum honeycomb panels weigh only 1/5 of ordinary aluminum panels of the same stiffness and 1/10 of stone. This means:
- Reduced structural load and steel frame usage
- Reduced transportation and installation costs
- Improved seismic performance, especially suitable for super high-rise buildings
The over 70,000 square meters of honeycomb aluminum panel curtain wall in the fourth phase expansion project of Shanghai Pudong International Airport was chosen precisely because of this characteristic.
② High Strength: Outstanding Wind Pressure Resistance
The honeycomb sandwich structure gives the panels an extremely high strength-to-weight ratio. In wind load calculations, aluminum honeycomb panels can easily meet the basic wind pressure requirements with a 50-year or even 100-year return period.
This advantage is particularly crucial for super high-rise buildings and large-span curtain walls.
③ Ultra-Flatness: Creating an Ultimately Flat Facade
Ordinary aluminum single panels inevitably exhibit "wavy" deformation when used over large areas. However, the honeycomb core layer of aluminum honeycomb panels provides uniform support, resulting in:
- Panel flatness within 1.0mm/m (premium products)
- A mirror-like flat visual effect on large-area facades
- Eliminating the risk of "light pollution" and enhancing the building's perceived quality.
④ Class A Fire Resistance: Outstanding Safety Performance
Using non-combustible aluminum and flame-retardant core materials, aluminum honeycomb panels generally achieve Class A2 (EU standard) or Class A in national standards. This meets the stringent requirements of the "Code for Fire Protection Design of Buildings" for high-rise building curtain walls.
⑤ Green and Environmentally Friendly: 100% Recyclable
Aluminum is recyclable, meeting green building standards. Driven by the "dual carbon" goals and the "good housing" construction policy, this characteristic is becoming a plus in project approval.

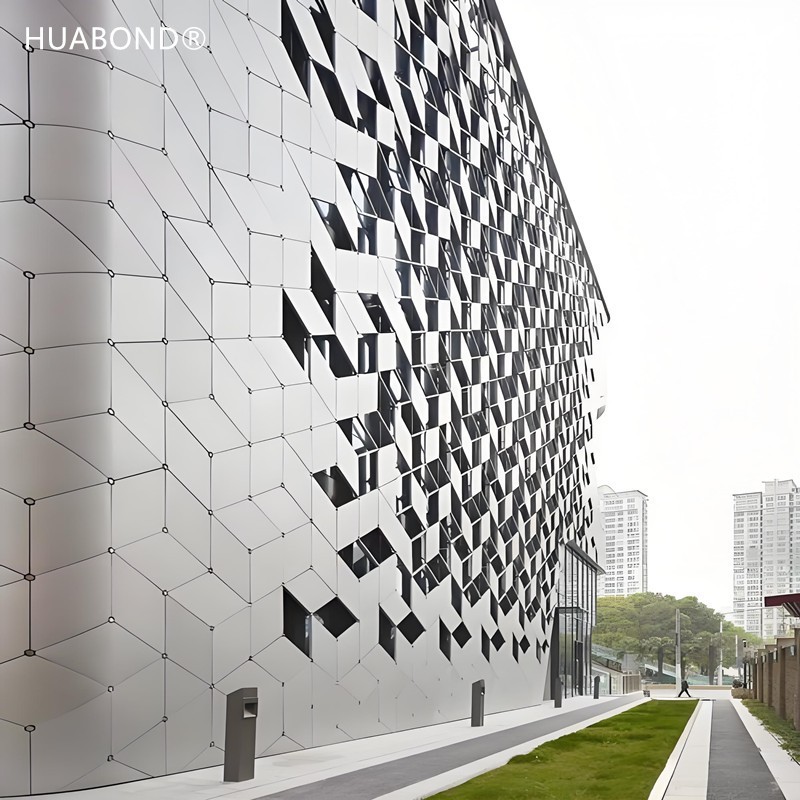

⑥ Flexible Customization: Meets Irregular Design Needs
From hyperboloids to wood grain finishes, from perforated to hollowed-out designs, aluminum honeycomb panels offer a wide range of shapes and surface treatments. The Anji "Two Mountains" Future Science and Technology City Cultural and Art Center uses hyperboloid honeycomb aluminum panels to create a dynamic roof shape reminiscent of bamboo leaves.

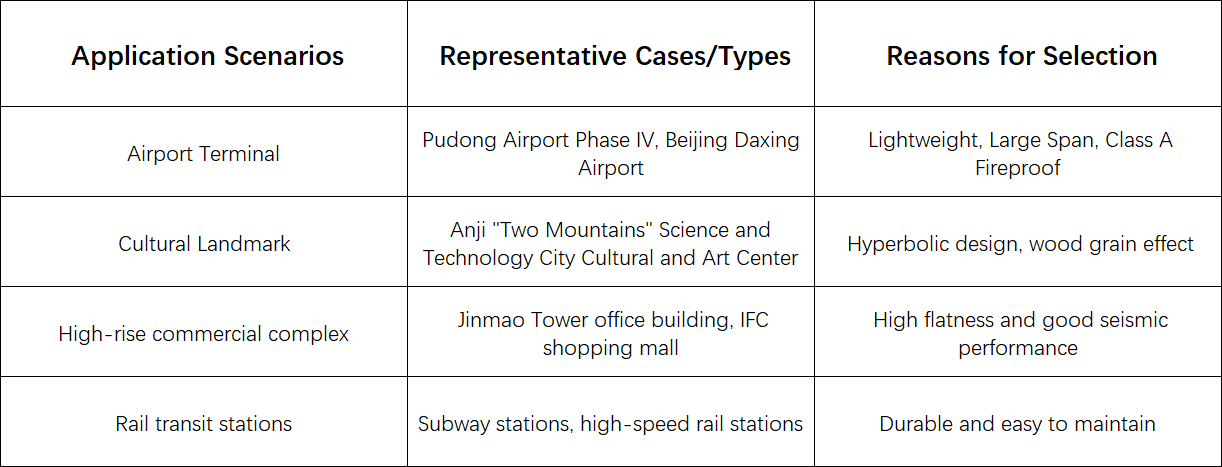

03 Typical Applications: From Landmarks to Everyday Life
04 Purchasing Guide: Three Tips for Choosing the Right Aluminum Honeycomb Panels
1. Check Peel Strength: This is the core indicator of honeycomb panel durability. The national standard requires ≥7N/mm; products with ≥9N/mm are recommended.
2. Check Coating Process: The fluorocarbon coating thickness should not be less than 25μm, and greater than 40μm in coastal areas and acid rain regions. International brands such as PPG and AkzoNobel are recommended.
3. Check Manufacturer Qualifications: Verify ISO system certification, project cases, and test reports. Prioritize manufacturers with experience in large-scale projects.
From airport terminals to city landmarks, from super high-rise office buildings to cultural and art centers, aluminum honeycomb panels are becoming an ideal choice for building curtain walls due to their comprehensive advantages of being lightweight, high-strength, flat, fireproof, and environmentally friendly.
Under the major trends of green building and prefabricated construction, this biomimetic material, applicable to both the sky and the ground, will unleash even greater potential.
